SERVO
In stock, ready for delivery

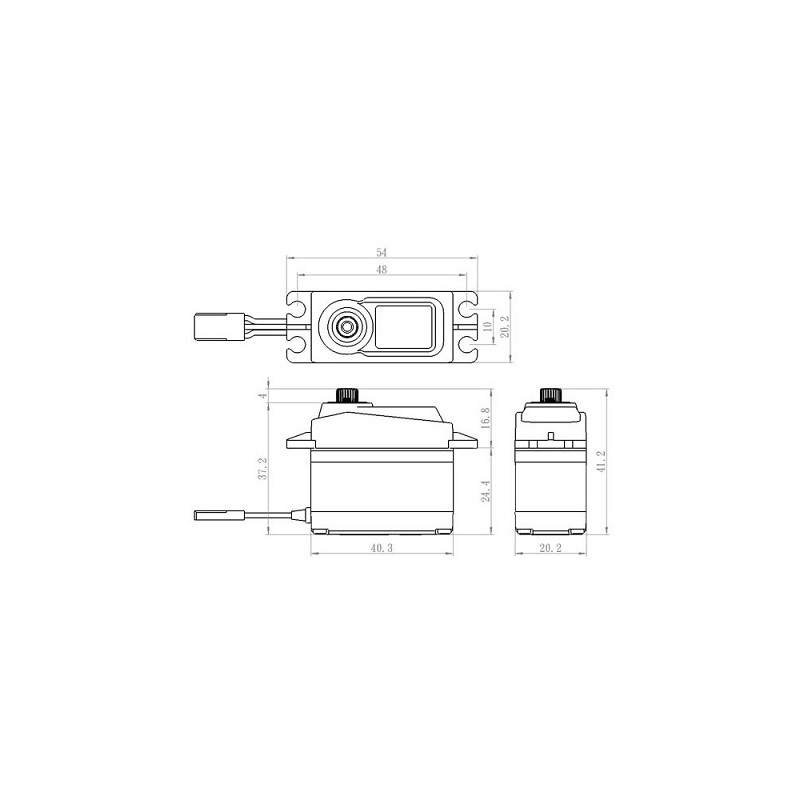

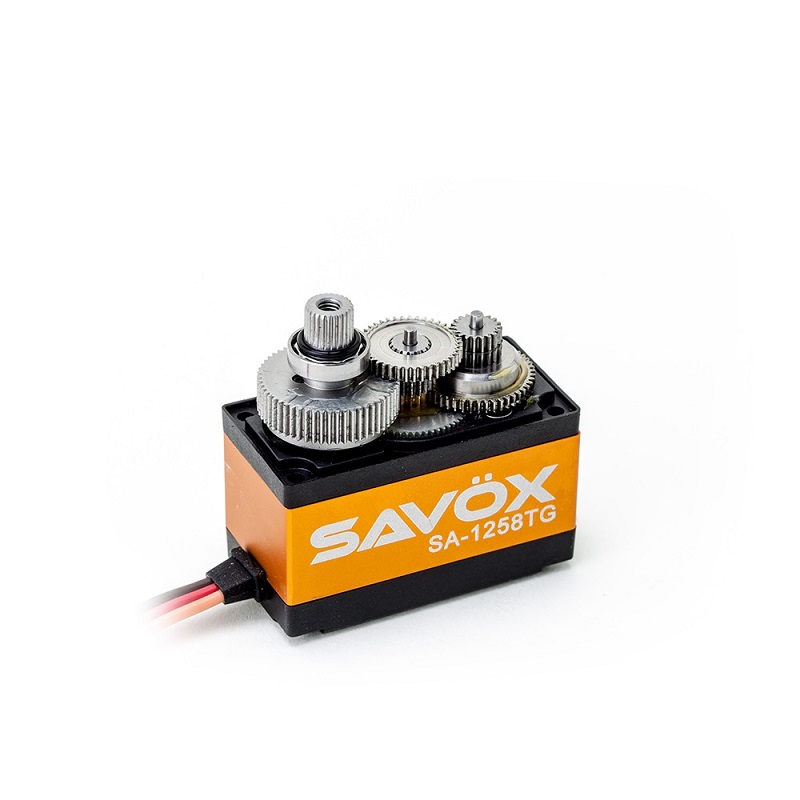

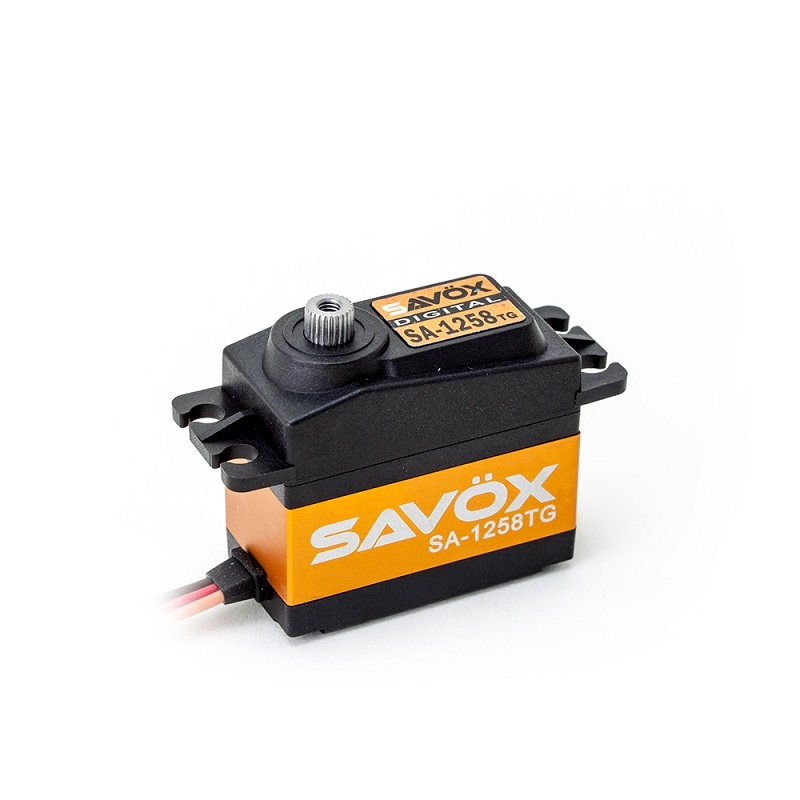

SAVÖX SA-1258TG Servo
Description
Digital servo
Classification: Standard
Motor: coreless motor
Transmission: Titan
Number of output gear teeth: 25
Housing: metal part
Number of Bearings: 2
Operating time (sec) to 60 degrees: 0.10 at 4.8V and 0.08 at 6.0V
Force (kg): 10.2 4.8V and 12.0 at 6.0V
Weight (gr): 52.0
Dimensions L / W / H (mm): 40.3 x 20.2 x 37.2
Scope of delivery: incl servo servo lever and mounting screws.
Scope: Helicopter, Airplane
Possible applications: swash plate servo for helicopters and large model aircraft
Price: 65 €.
Description
Digital servo
Classification: Standard
Motor: coreless motor
Transmission: Titan
Number of output gear teeth: 25
Housing: metal part
Number of Bearings: 2
Operating time (sec) to 60 degrees: 0.10 at 4.8V and 0.08 at 6.0V
Force (kg): 10.2 4.8V and 12.0 at 6.0V
Weight (gr): 52.0
Dimensions L / W / H (mm): 40.3 x 20.2 x 37.2
Scope of delivery: incl servo servo lever and mounting screws.
Scope: Helicopter, Airplane
Possible applications: swash plate servo for helicopters and large model aircraft
Price: 65 €.

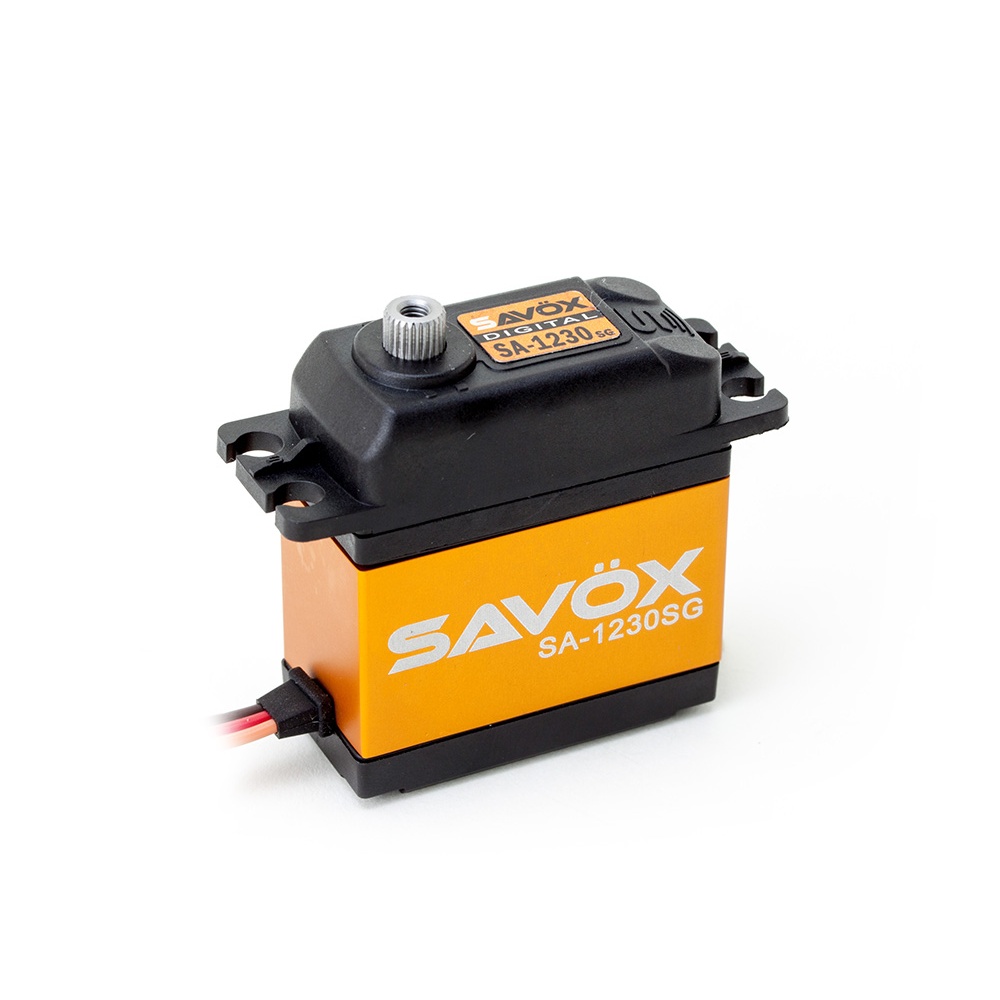

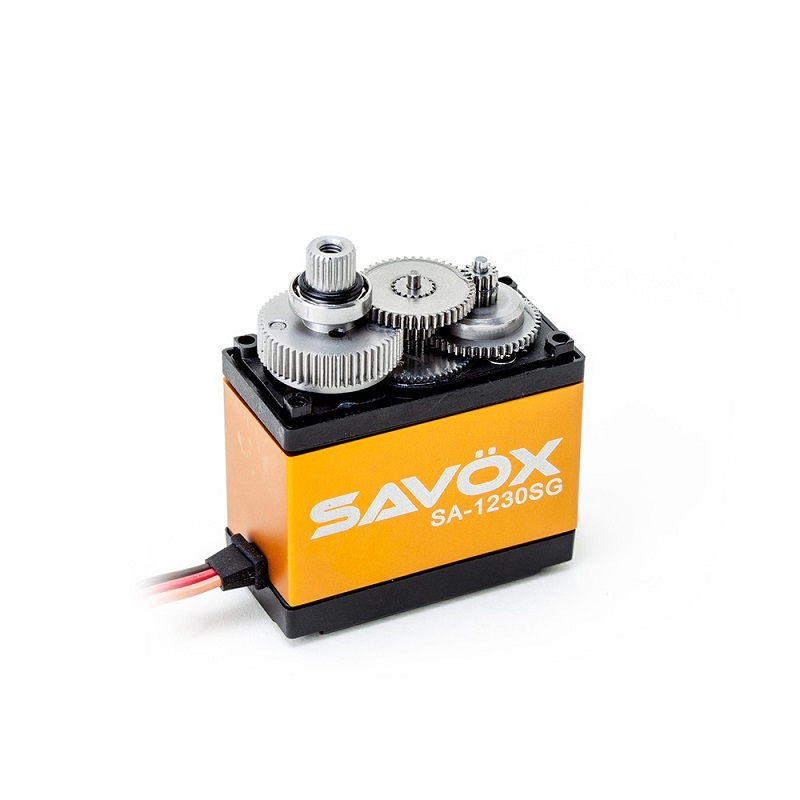

SAVÖX SA-1230SG Servo
Description
Extremely powerful digital servo
Classification: Standard
Motor: coreless motor
Gearbox: steel
Number of output gear teeth: 25
Housing: metal part
Number of Bearings: 2
Operating time (sec) to 60 degrees: 0.20 at 4.8 V and 0.16 at 6.0 V
Force (kg): 30.0 at 4.8V and 36.0 at 6.0V
Weight (gr): 79.0
Dimensions L / W / H (mm): 40.3 x 20.2 x 44.9
Scope of delivery: incl servo servo lever and mounting screws.
Scope: Airplane
Possible applications: Great Planes
Price: 80 €
Description
Extremely powerful digital servo
Classification: Standard
Motor: coreless motor
Gearbox: steel
Number of output gear teeth: 25
Housing: metal part
Number of Bearings: 2
Operating time (sec) to 60 degrees: 0.20 at 4.8 V and 0.16 at 6.0 V
Force (kg): 30.0 at 4.8V and 36.0 at 6.0V
Weight (gr): 79.0
Dimensions L / W / H (mm): 40.3 x 20.2 x 44.9
Scope of delivery: incl servo servo lever and mounting screws.
Scope: Airplane
Possible applications: Great Planes
Price: 80 €
|
|
|

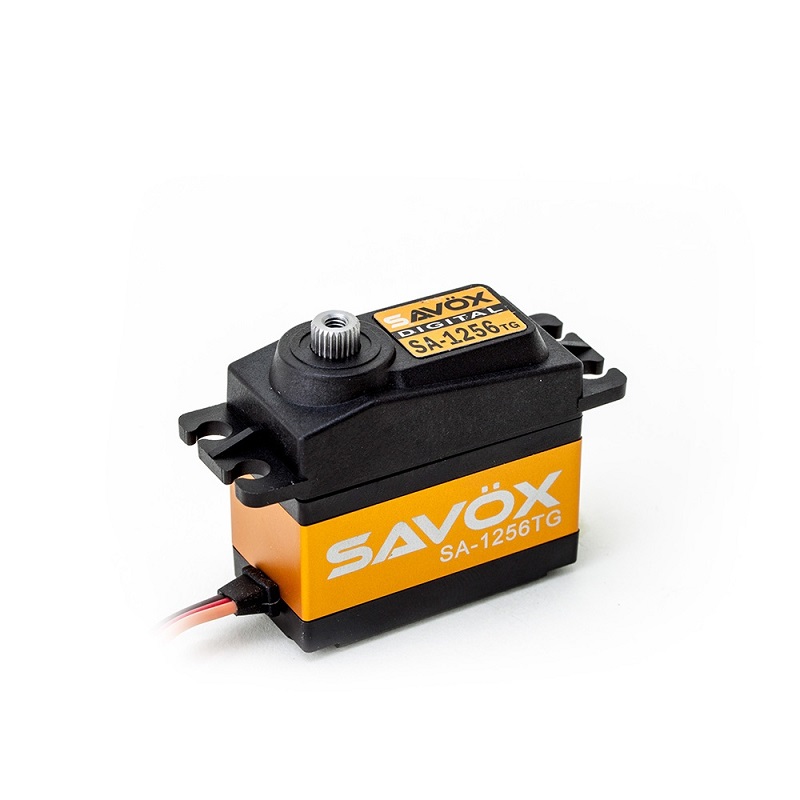

SAVÖX SA-1256TG Servo
Description
Extremely powerful digital servo
Classification: Standard
Motor: coreless motor
Transmission: Titan
Number of output gear teeth: 25
Housing: metal part
Number of Bearings: 2
Operating time (sec) to 60 degrees: 0.18 at 4.8 V and 0.15 at 6.0 V
Force (kg): 16.0 4.8V and 20.0 at 6.0V
Weight (gr): 52.0
Dimensions L / W / H (mm): 40.3 x 20.2 x 37.2
Scope of delivery: incl servo servo lever and mounting screws.
Applications: helicopters, aircraft
Possible applications: Great Planes
Price: 69 €.
Description
Extremely powerful digital servo
Classification: Standard
Motor: coreless motor
Transmission: Titan
Number of output gear teeth: 25
Housing: metal part
Number of Bearings: 2
Operating time (sec) to 60 degrees: 0.18 at 4.8 V and 0.15 at 6.0 V
Force (kg): 16.0 4.8V and 20.0 at 6.0V
Weight (gr): 52.0
Dimensions L / W / H (mm): 40.3 x 20.2 x 37.2
Scope of delivery: incl servo servo lever and mounting screws.
Applications: helicopters, aircraft
Possible applications: Great Planes
Price: 69 €.
|
|
|
In stock, ready for delivery
|
|
|

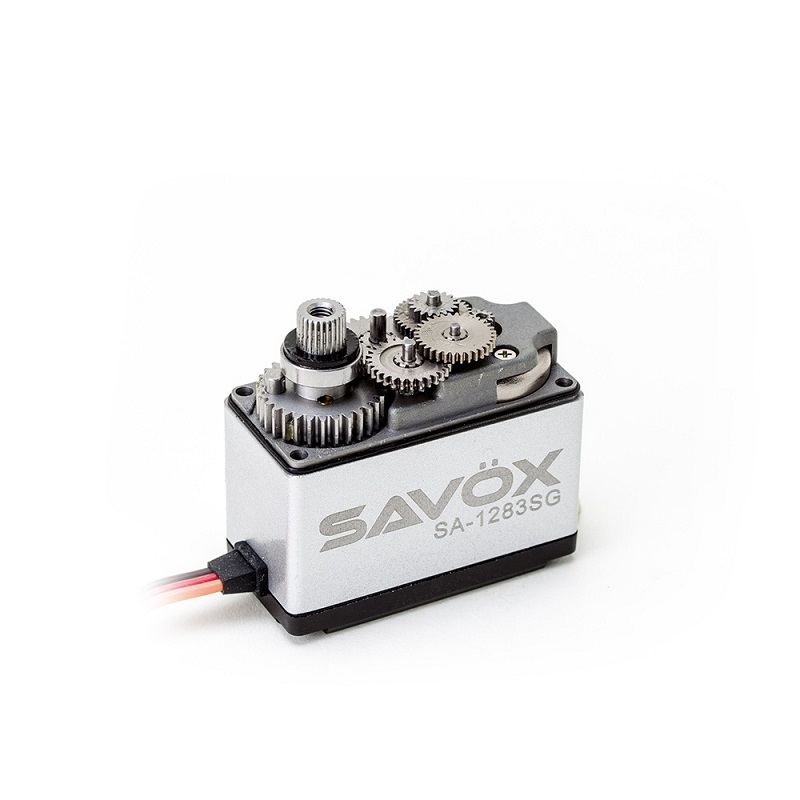

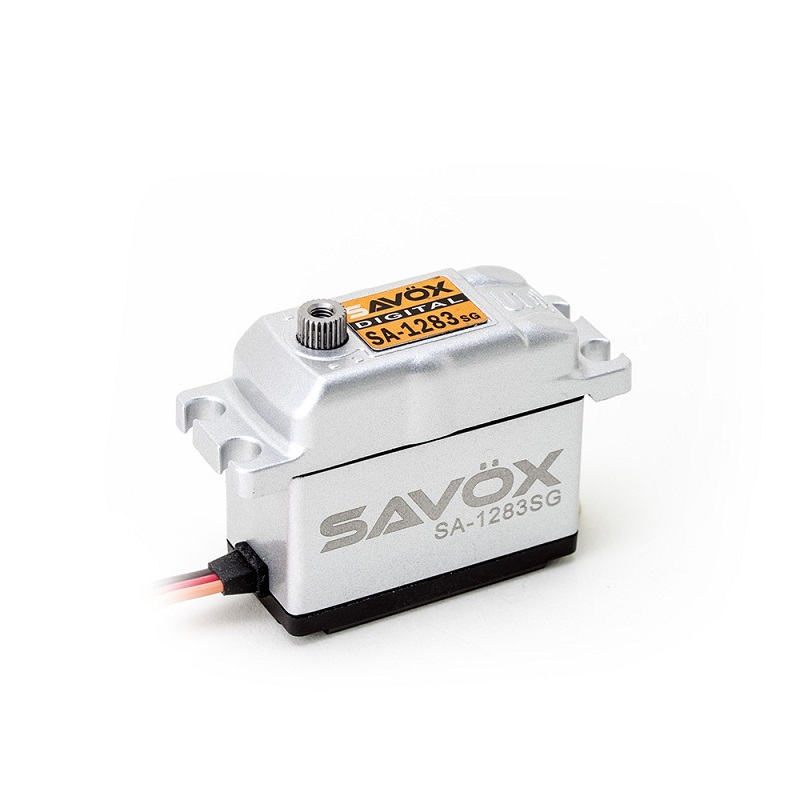

SAVÖX SA-1283SG Servo
Description
Extremely powerful digital servo
Classification: Standard
Motor: coreless motor
Gearbox: steel
Number of output gear teeth: 25
Body: Full metal
Number of Bearings: 2
Operating time (sec) to 60 degrees: 0.16 at 4.8V and 0.13 at 6.0V
Force (kg): 25.0 4.8V and 30.0 at 6.0V
Weight (gr): 80.0
Dimensions L / W / H (mm): 40.8 x 20.2 x 36.4
Scope of delivery: incl servo servo lever and mounting screws.
Scope: helicopter, airplane, car
Possible applications: Jets
Price: 84 €.
Description
Extremely powerful digital servo
Classification: Standard
Motor: coreless motor
Gearbox: steel
Number of output gear teeth: 25
Body: Full metal
Number of Bearings: 2
Operating time (sec) to 60 degrees: 0.16 at 4.8V and 0.13 at 6.0V
Force (kg): 25.0 4.8V and 30.0 at 6.0V
Weight (gr): 80.0
Dimensions L / W / H (mm): 40.8 x 20.2 x 36.4
Scope of delivery: incl servo servo lever and mounting screws.
Scope: helicopter, airplane, car
Possible applications: Jets
Price: 84 €.
|
In stock, ready for delivery
|
|
|
![SH-82_00[1]](SH-82_00[1].jpg "SH-82_00[1]")
![SH-82_01[1]](SH-82_01[1].jpg "SH-82_01[1]")
In stock, ready for delivery

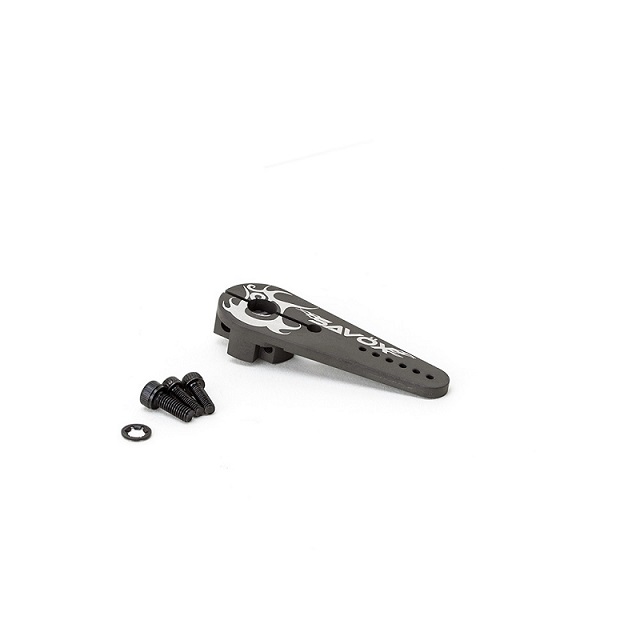

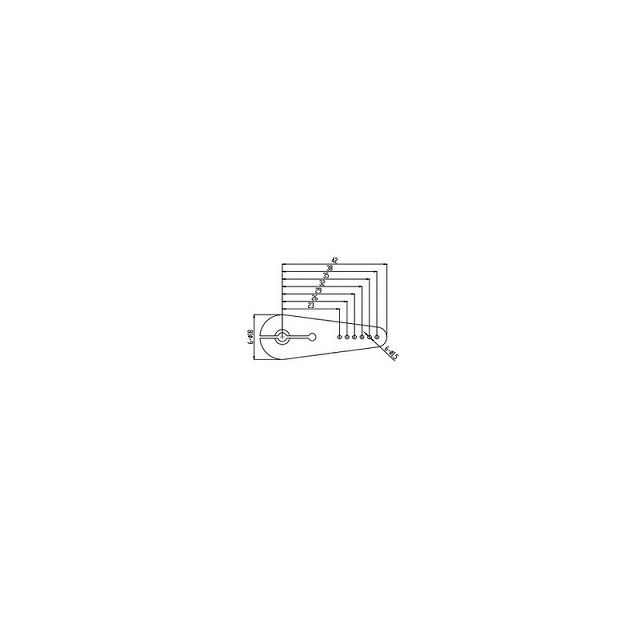

SAVÖX Servo in aluminum
Description
For SAVÖX standard servo with metal gears (lever arm aluminum, U-disk and servo arm mounting screws)
Fits the following servos: All servos SC, SB, SW, SV and SA 12XX series as well as the Midi Servos SH Series.
Price: 8 €.
Description
For SAVÖX standard servo with metal gears (lever arm aluminum, U-disk and servo arm mounting screws)
Fits the following servos: All servos SC, SB, SW, SV and SA 12XX series as well as the Midi Servos SH Series.
Price: 8 €.
