Technical Data Sheet:
Materials: Composite Prepreg used only, full Sandwich.

New technology:

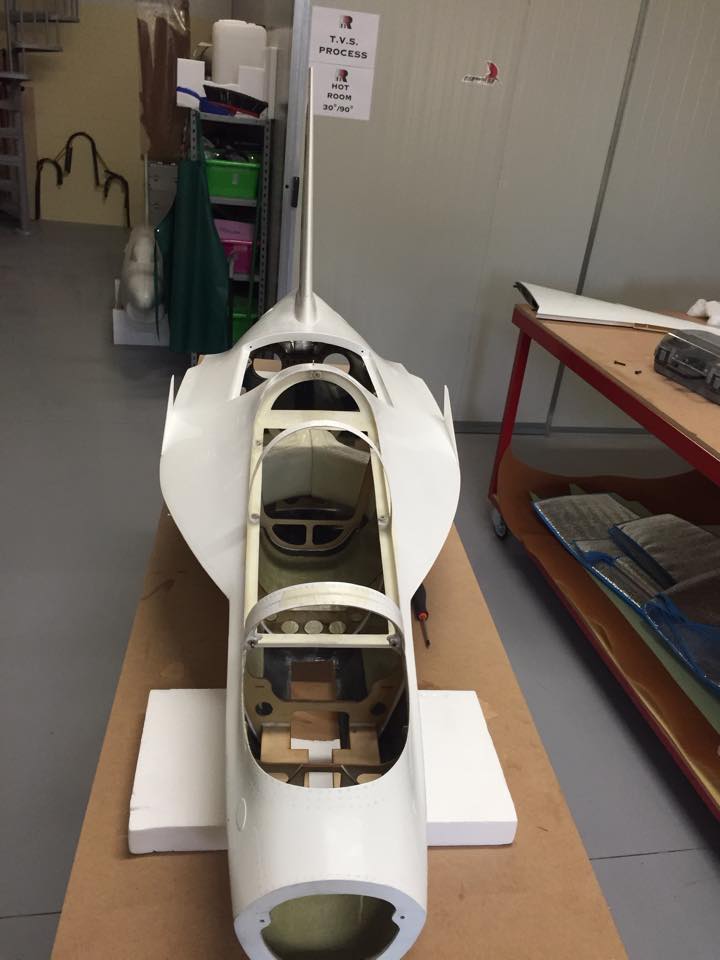

Thermo-Vacuum System ( TVS )

Data:
Lenght:      2300mm
Wingspan: 1940mm
Airframe Weight: 6,5Kg
Ready to fly weight: 11,5-13,5Kg
Power: 12 - 16Kg Thrust
346-21
346-5

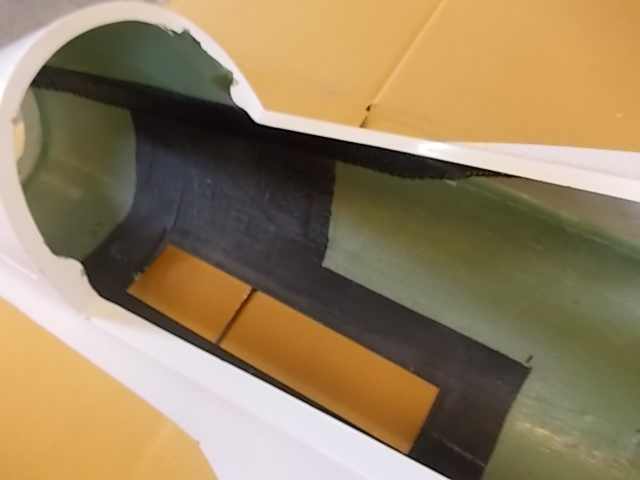

DSCN2356
M346-13
M346-14
559845_634815783228441_1940772035_n[1]
M346-15
10390885_743867838989901_9016589639953129083_n[1]

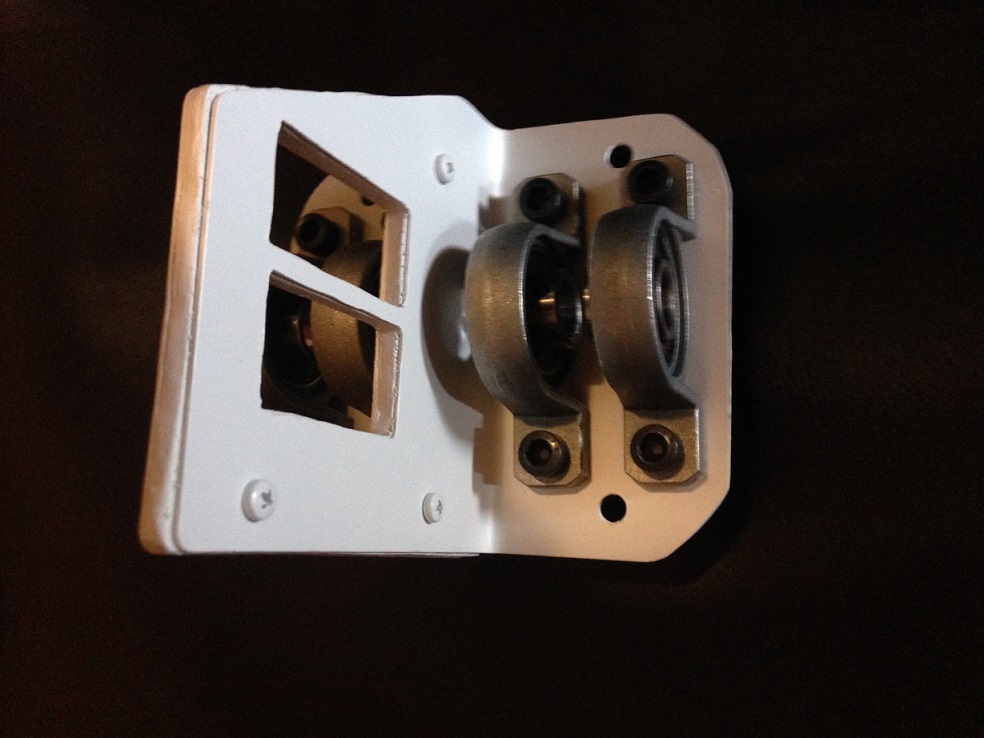

615455_743867758989909_1805171562682448770_o[1]

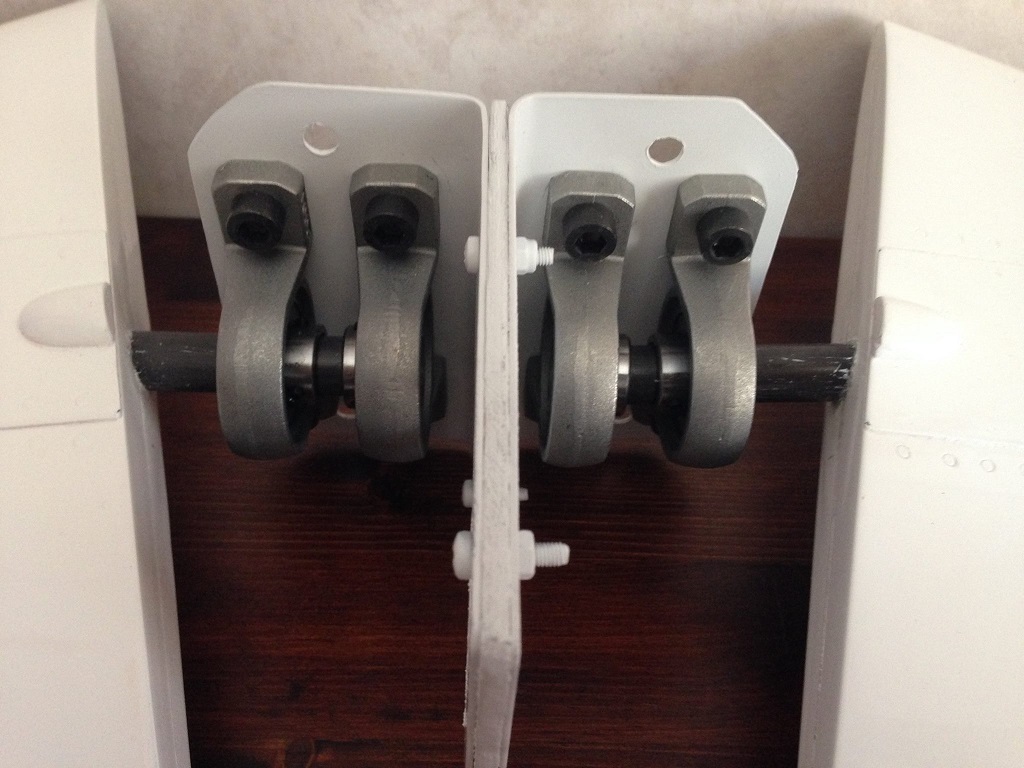

10557593_743867792323239_2284561995854425913_o[1]
10541440_743867858989899_7900914306147733034_o[1]
Kit Feature:
M-346 Master painted in Red, Blue or Italian RS grey.
You can order it in white gel coat and save 125 €
Fuel tank
Price:
M-346 Master painted                                2500 €
M-346 Cockpit                                             545 €
Electron 40EvO+ RS200 Electronic + RS-200 programmer                                               617 €
Scale Retract                                            1573 €
Exhaust                                                      250 €
Turbine required 10 - 14Kg Thrust
JB130
TURBINE SET CONTENTS:
JB-130 TURBINE WITH ELECTRIC STARTER, ECU ( ENGINE CONTROL UNIT ), GSU ( GROUND SUPPORT UNIT ), SET OF CABLES, PRO JET MANUALS, KEROSENE PUMP TYPE P7-2, KEROSENE FILTER, PROPANE FILTER, FELTCLUNK, CLUNK ADAPTER, TUBING FOR KEROSENE AND PROPANE, GLOWPLUG WRENCH, TYGON TUBING, ONBOARD GAS TANK, TURBINE MOUNT, TURBINE HANDBOOK, TESTRUN CERTIFICATE.
                       SPECIFICATION:
DIAMETER: 113mm
LENGHT: 325mm
WEIGHT: 1500g
MAX THRUST: 135N TO 120.000 rpm
MIN THRUST: 7N TO 35.000 rpm
FUEL CONSUMPTION MAX THRUST:  500ml/min
EXHAUST TEMPERATURE: 650 *C
FUEL: JET A1, DIESEL, PARAFFIN ( +5% TURBINE OIL )
PRICE: 3199 € JB-130G ( GAS START )
PRICE: 3353 € JB-130K ( KEROSEN START )

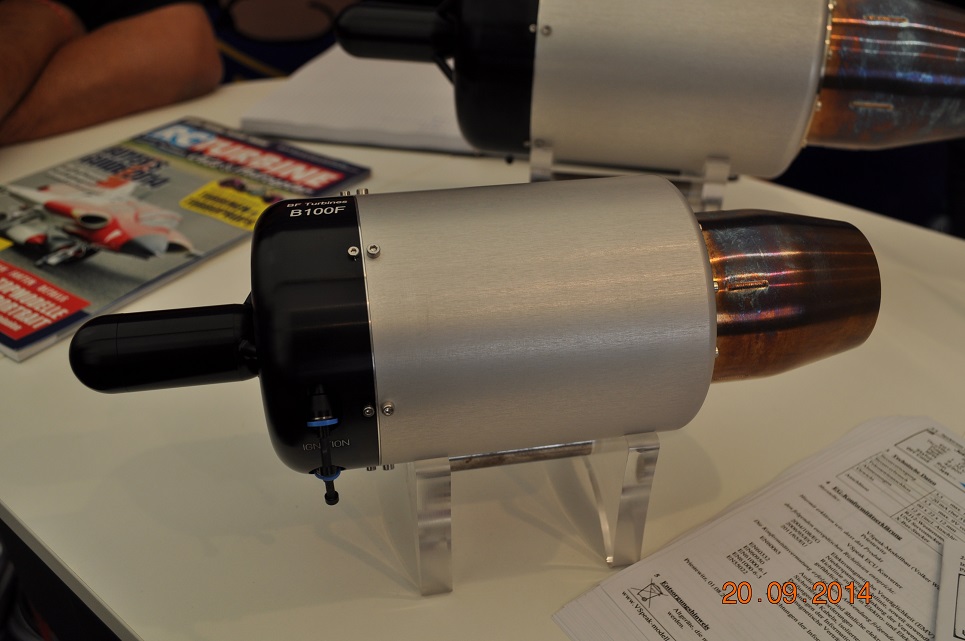

B100F TURBINE:
Diameter: 99mm
Length: 296mm
Weight Turbine: 1080Kg
Weight Periphery: 420g
Max Thrust: 100N at 133.000 rpm
Min Thrust: 5N at 38.000 rpm
Consumption: 365ml, 269g at 100N
Exhasut Temperature: 670 - 740 celsius
Fuel: Kerosene, Diesel, Petroleum
Acceleration 38k - 133k rpm: 3,4sec.
Pressure ratio: 2,8:1

PRICE: 2299 €
DSC03216
DSC03217
LG-3
LG-4

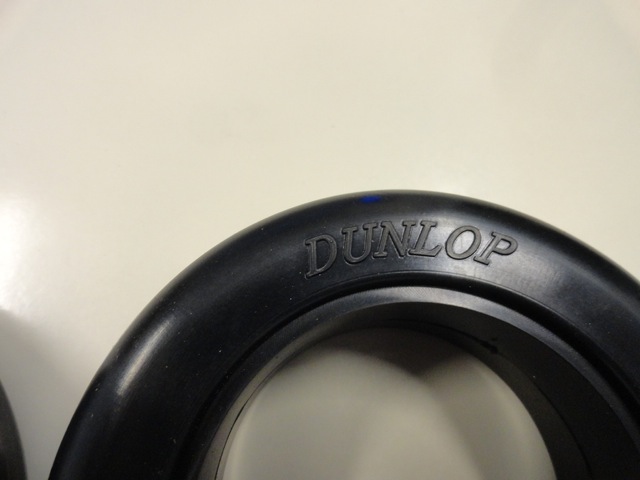

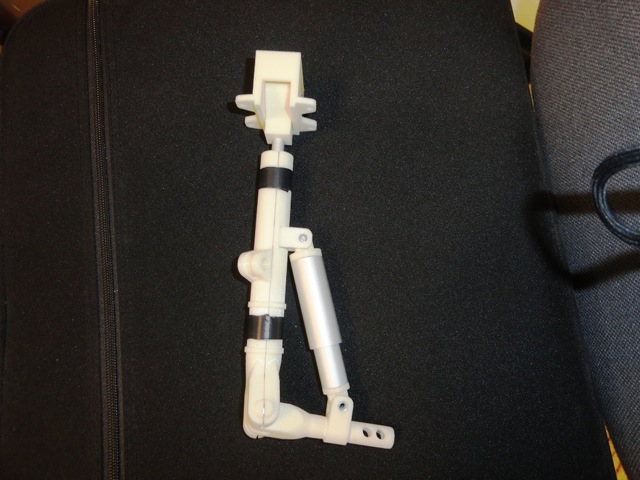

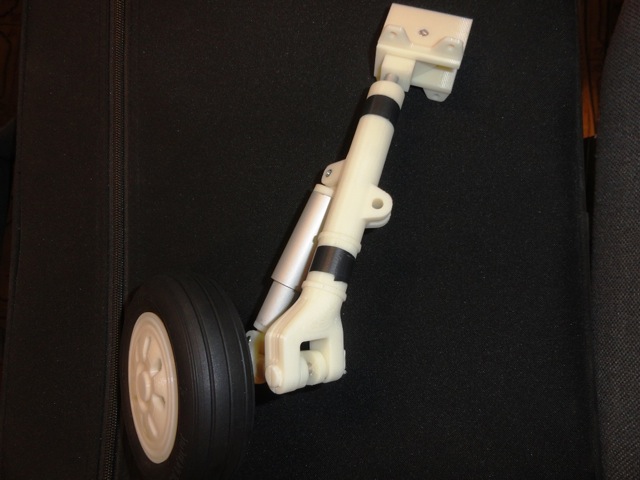

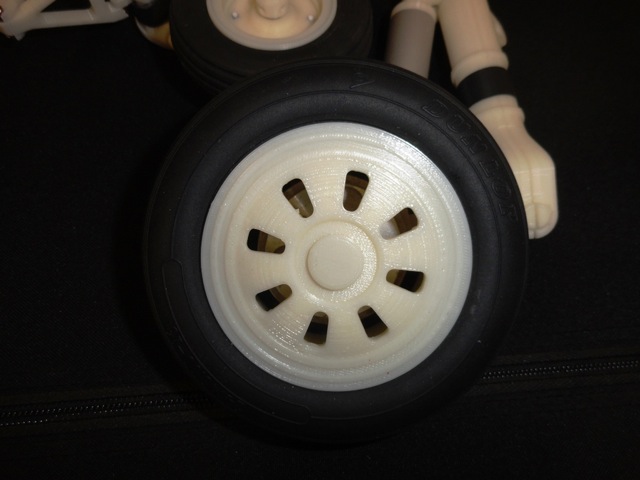

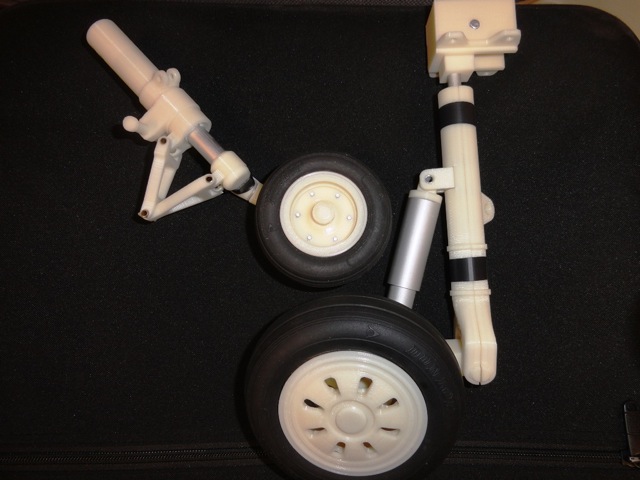

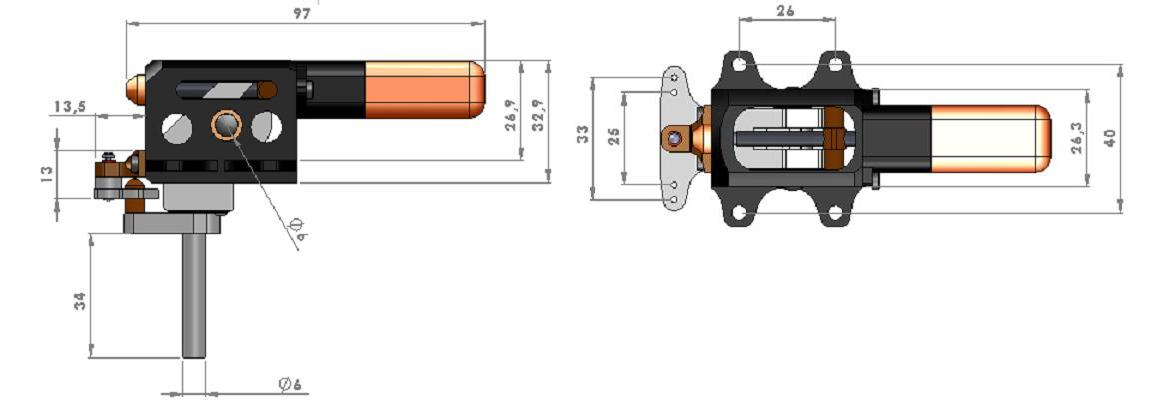

M-346 Master Scale Landing gear
DSC03218
DSC03215

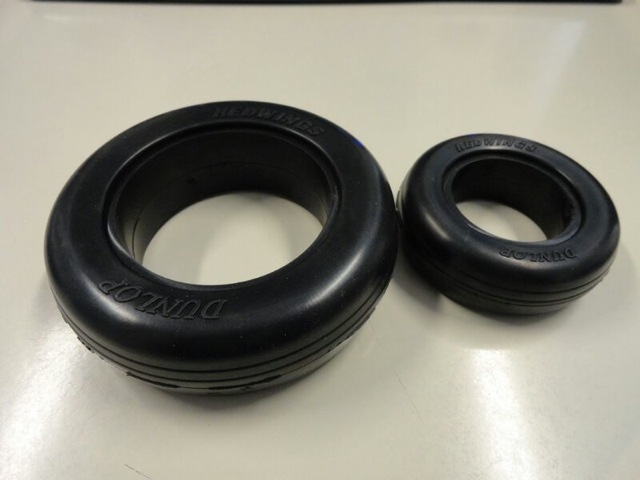

IMG_6707
DSC03271
retracts[1]
retracts4

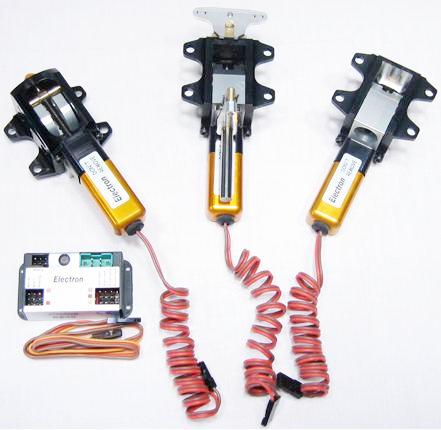

Electron 40EvO+ RB-45 Electronic
P140RXi4
P140RXi35

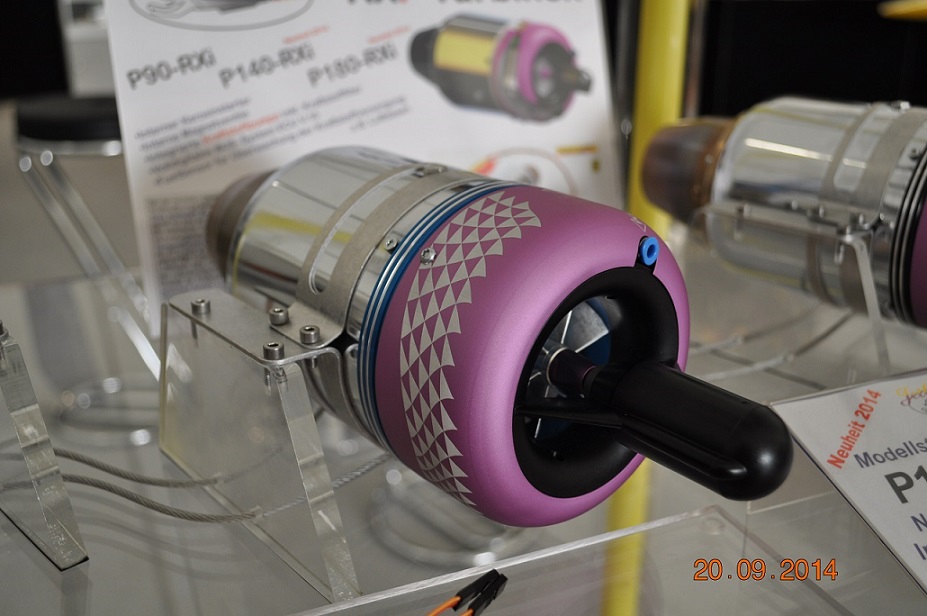

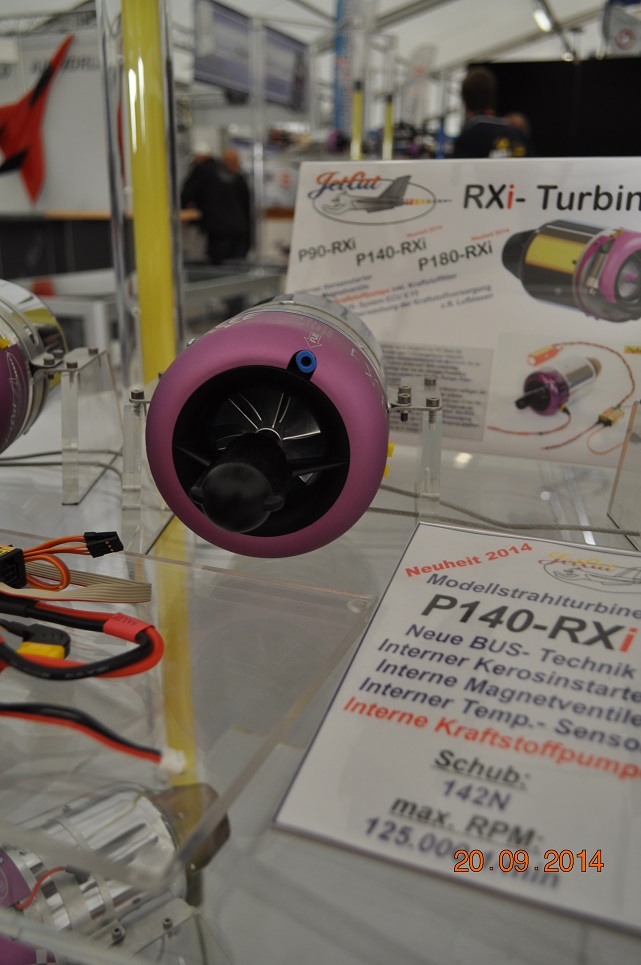

Jet-Cat P 140 RXi:
Thrust: 14,2Kg
Weight: 1590g
Diameter: 112mm
Length: 320mm
RPM range: 33000 - 125000 RP/min
Exhaust: 710 C
Fuel: Jet-A1 med 5% oilmix  ( turbinoil )
Fuel consumpsion: 510 ml/min to the highest RPM
Maintenance interval:  50 timmar/Hours
Pris: € 2700 ( normal price
€ 2795 )

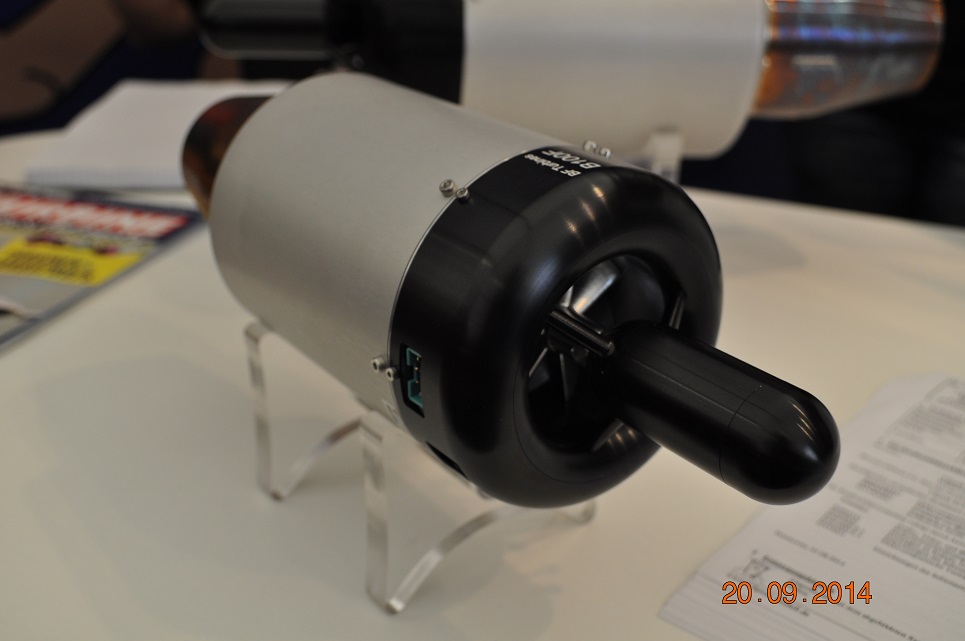

DSC_1031
DSC_1032
346-16

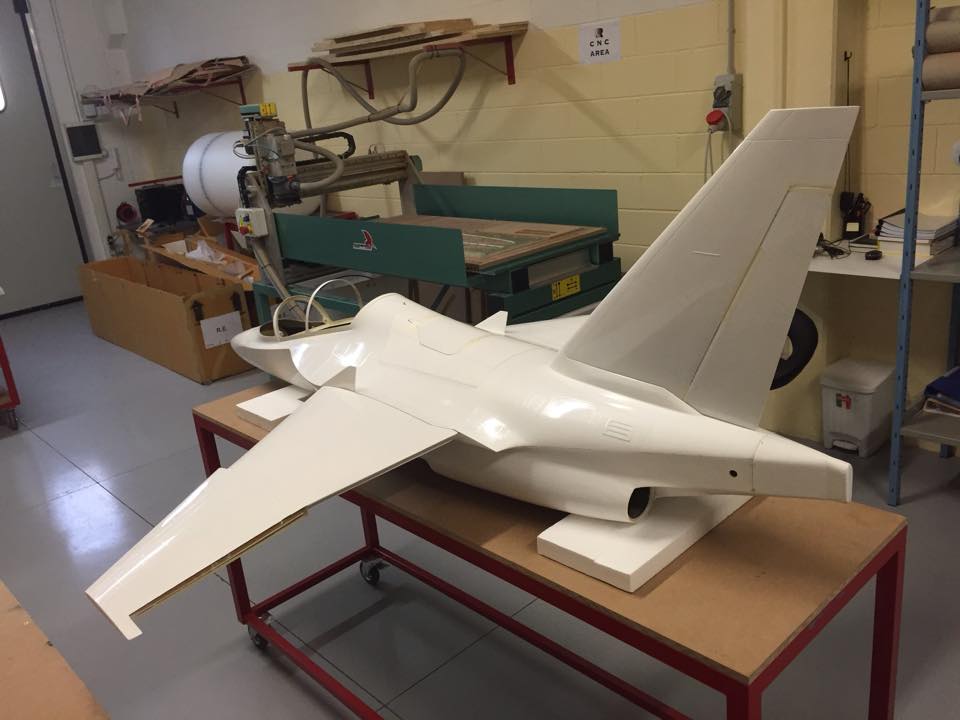

346-3
346-14
346-10

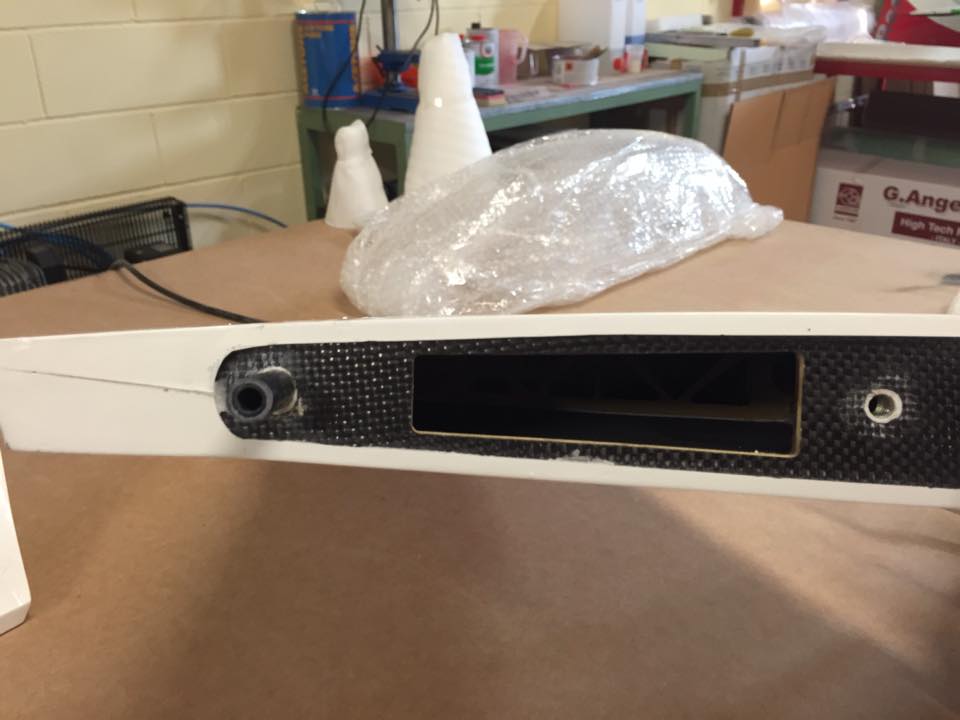

346-13
346-18
346-15
346-12
346-9
346-19
346-20

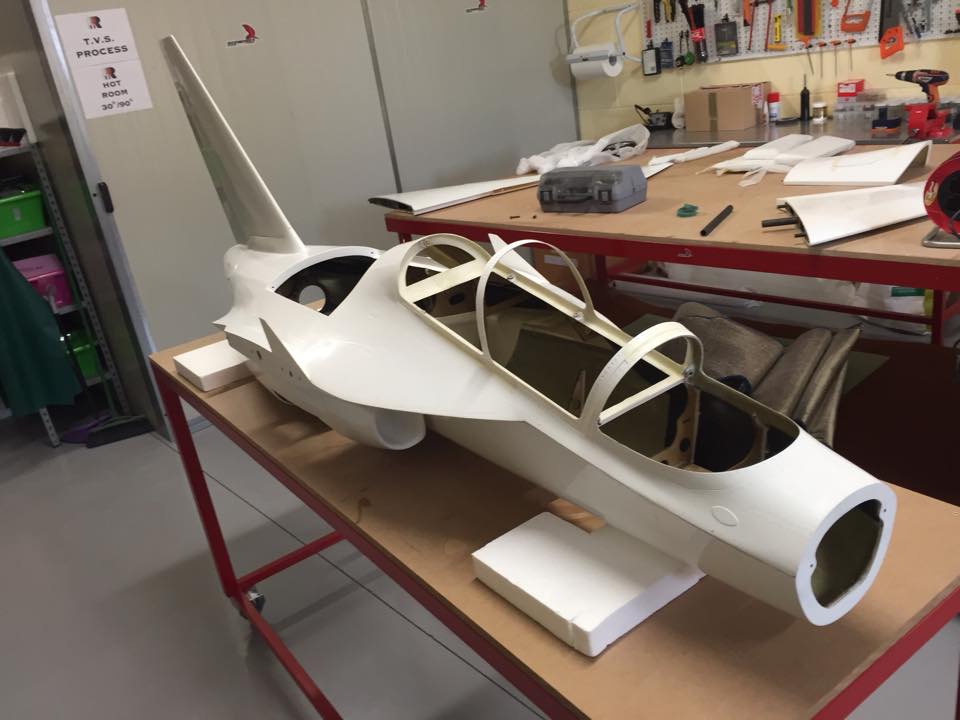

346-7
346-4

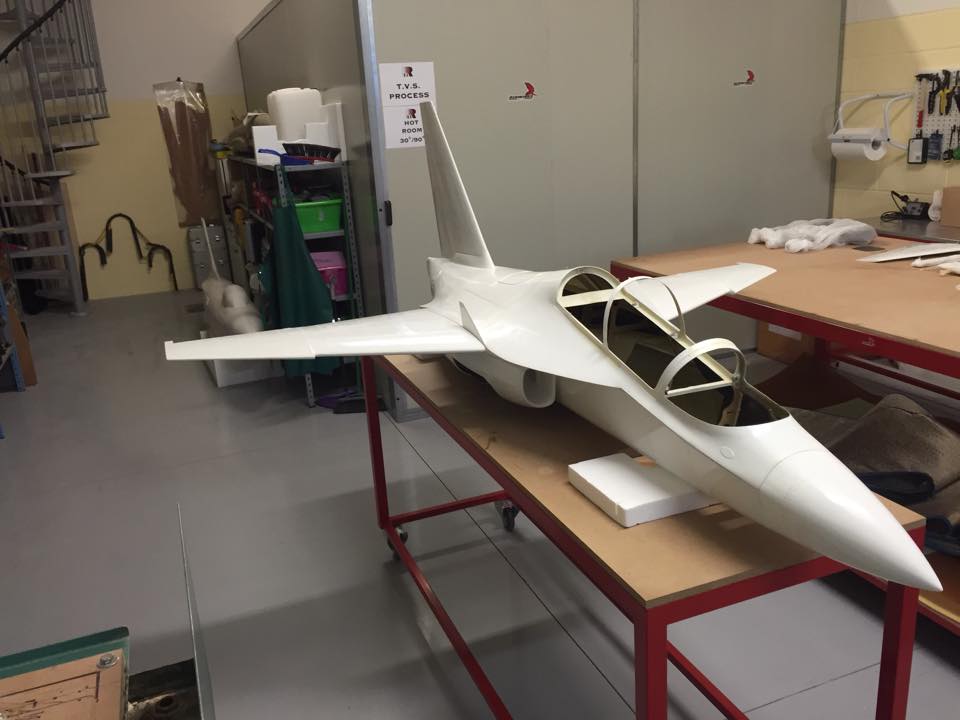

M-346 Master Scale 1:5
