Vi har hela Power Box Systems sortiment. För ytterligare information klicka på logotypen så kommer ni till Power Box egen webbsidan.
We have the complete range of Power Box Systems. For foward information, please click on the logo and you´ll be able to check the Power Box web site.

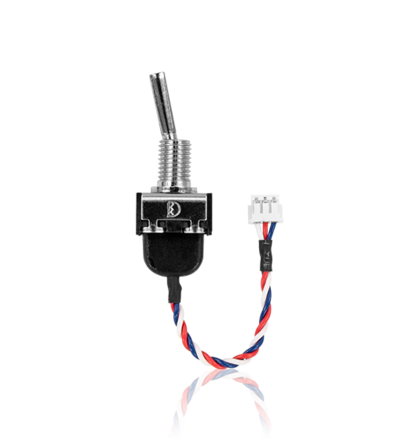

8120
Switch 2POS-S-OX-AB

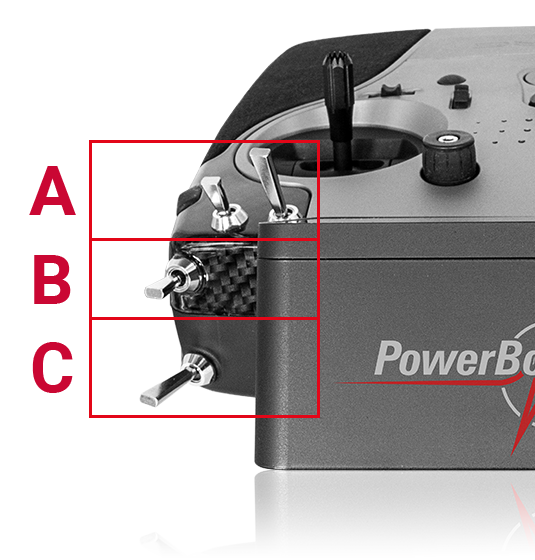

2 position, mounting position A and B
Mounting position B cannot be fitted by the customer himself
Pris/Price: € 14,90

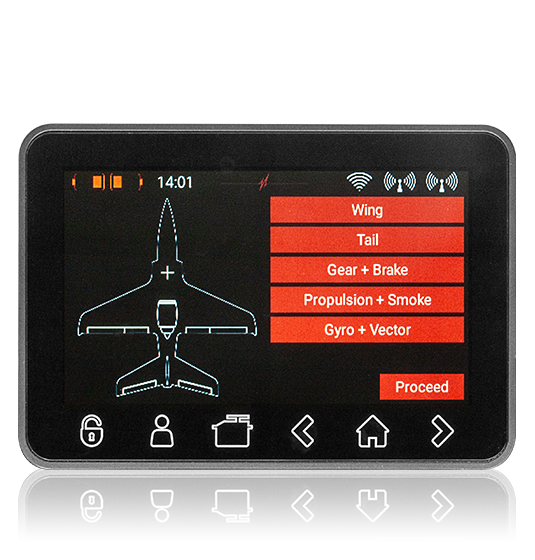

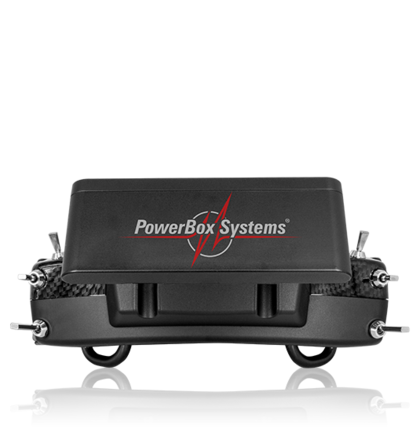

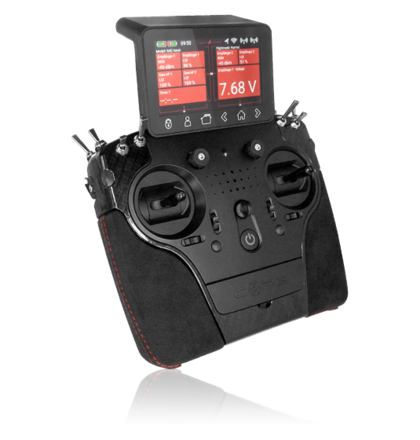

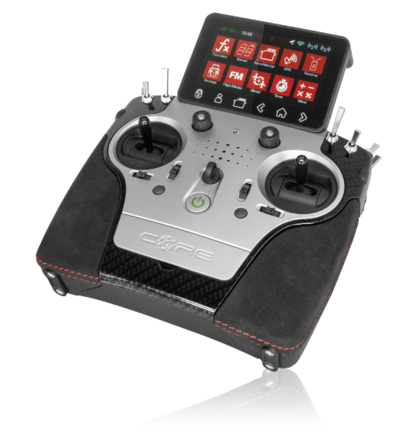

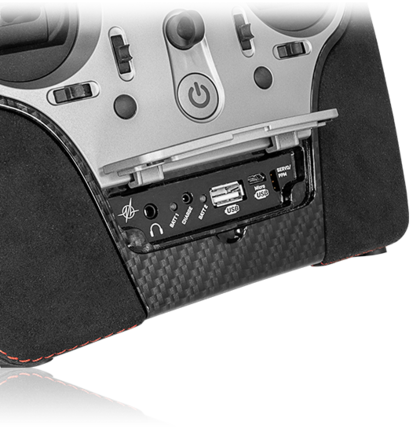

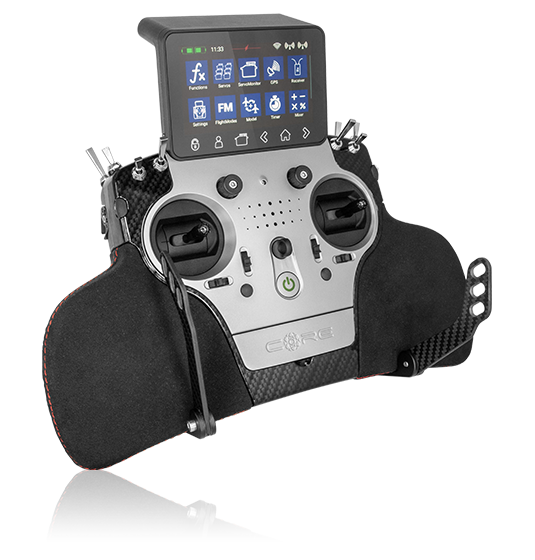

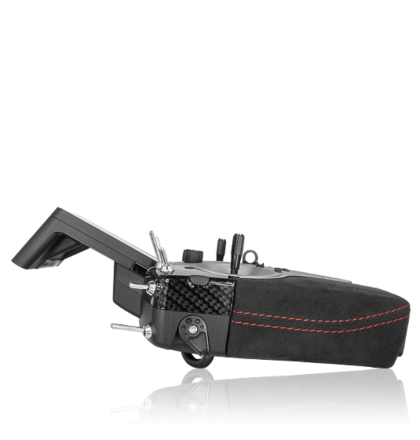

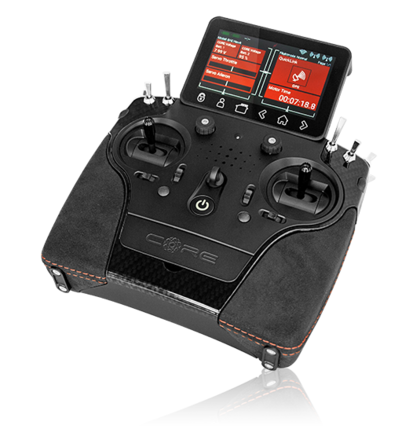

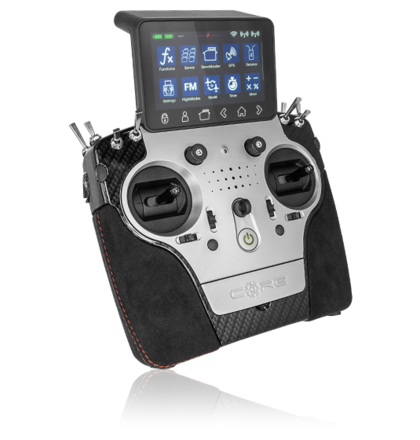

8101 Radio System Core

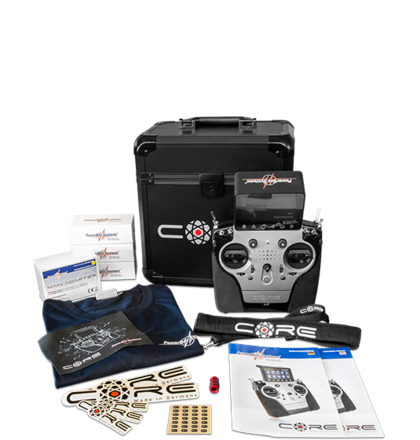

Set contents
PowerBox CORE
1x PBR-9D

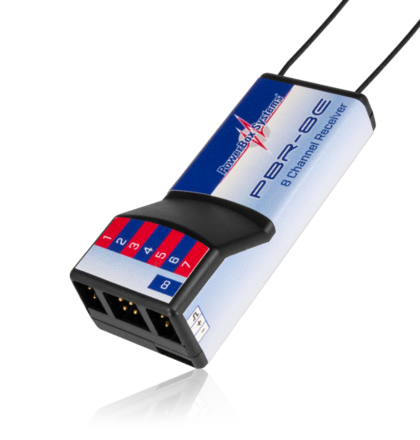

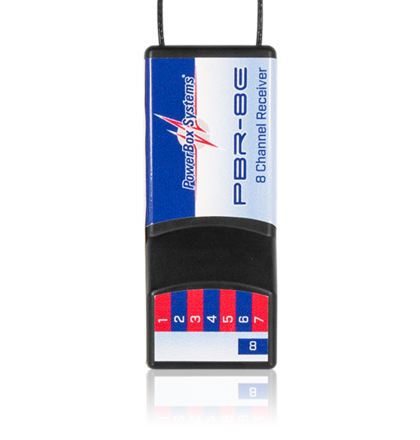

2x PBR-8E (only in limited Early-bird-Edition)
case
padded neck strap
main adapter
conversion tool
sticker set
screen cleaning cloth
exclusive Shirt "CORE", navy
Instruction manual in german and in english
Technical Data
Power supplyLi-Ion
Channels26
Servo signal resolution4096 Steps
ScreenTFT - Touch
Weight1190g
Temperature range-30°C to +85°C
Features
26-channel radio control system
extremely secure against interference, genuine redundant 2.4 GHz transmission
extremely long range
redundant PowerBox power supply system
high-performance real-time telemetry
up to 800 telemetry values per second
open bus interface for servos and telemetry
aluminum stick units
hall sensors for sticks and slider controls
20 transmitter controls + 2 optional stick switches

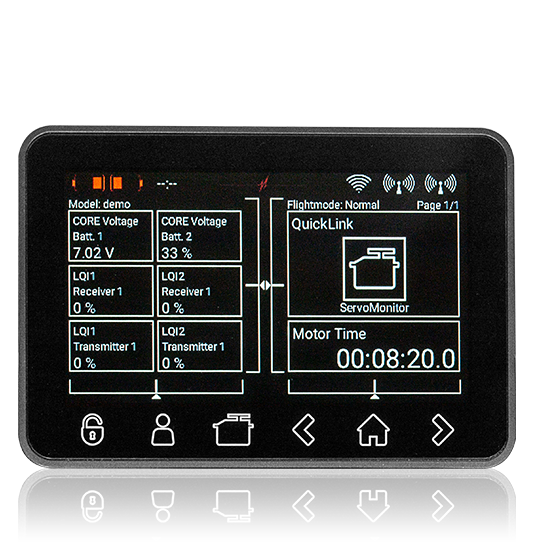

full-color screen with capacitive touch-screen
high-contrast screen, legible in sunlight
intuitive menu system with Smartkeys
integral GPS system
Linux PC system for every imaginable expansion
Pris/Price: € 2616
NEWS

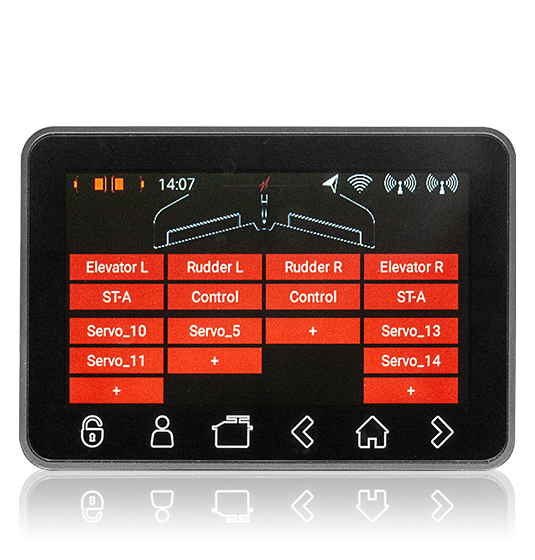

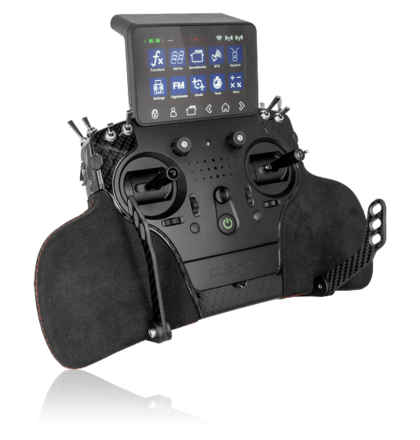

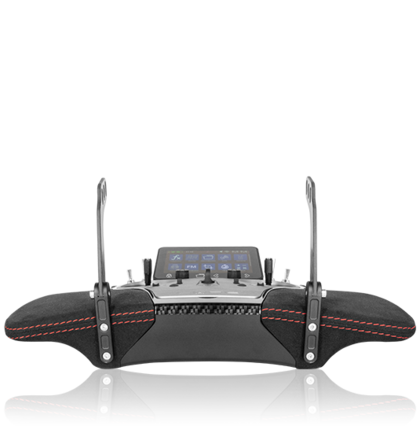

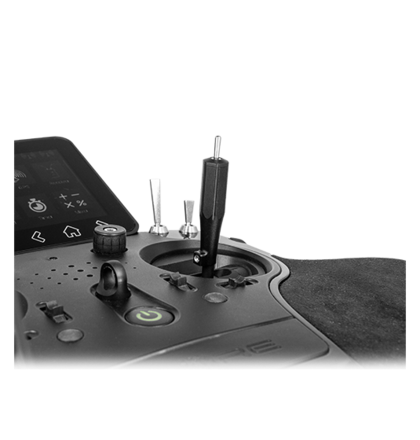

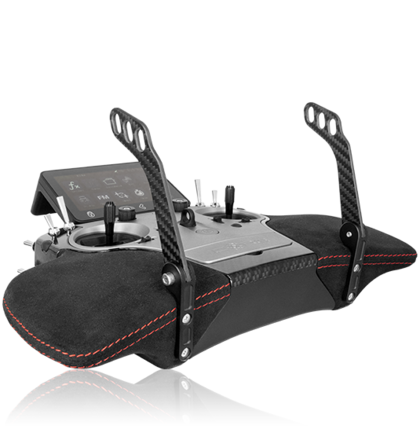

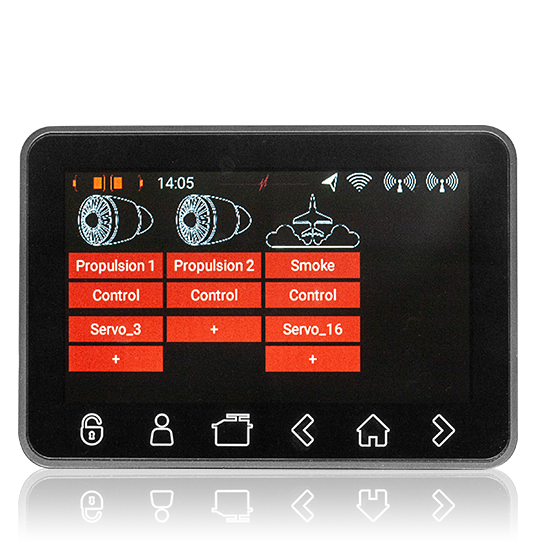

8105 Radio System Core

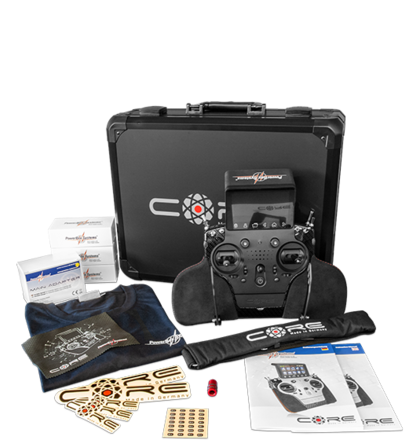

Set contents
PowerBox CORE
1x PBR-9D
2x PBR-8E (only in limited Early-bird-Edition)
case
padded neck strap
main adapter
conversion tool
sticker set
screen cleaning cloth
exclusive Shirt "CORE", navy
Instruction manual in german and in english
Technical Data
Power supplyLi-Ion
Channels26
Servo signal resolution4096 Steps
ScreenTFT - Touch
Weight1190g
Temperature range-30°C to +85°C
Features
26-channel radio control system
extremely secure against interference, genuine redundant 2.4 GHz transmission
extremely long range
redundant PowerBox power supply system
high-performance real-time telemetry
up to 800 telemetry values per second
open bus interface for servos and telemetry
aluminum stick units
hall sensors for sticks and slider controls
20 transmitter controls + 2 optional stick switches
full-color screen with capacitive touch-screen
high-contrast screen, legible in sunlight
intuitive menu system with Smartkeys
integral GPS system
Linux PC system for every imaginable expansion
Pris/Price: € 2616

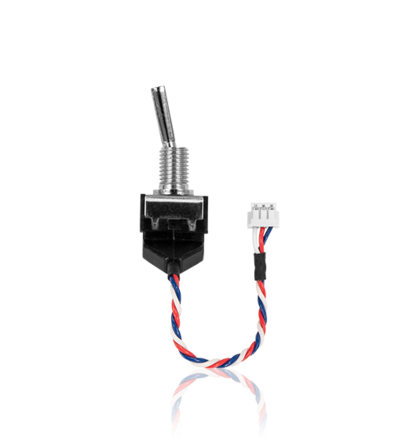

8123
Switch 2POS-S-OX-COrder
2 position, mounting position C
Pris/Price: € 14,90

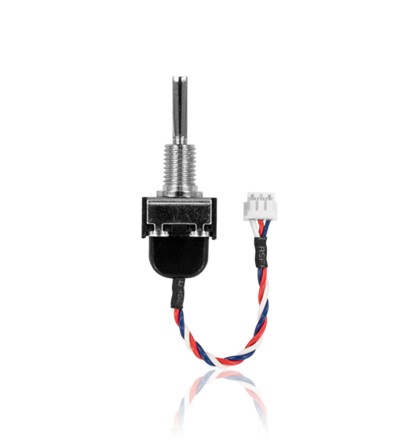

8125
Switch 3POS-S-OXO-AB
3-position, mounting position A and B
Mounting position B cannot be fitted by the customer himself
Pris/Price: € 14,90
8126
Switch 3POS-L-OXO-AB
3-position, mounting position A and B
Mounting position B cannot be fitted by the customer himself
Pris/Price: € 14,90

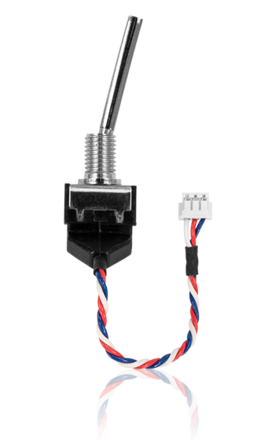

8127
Switch 3POS-L-OXO-C
3-position, mounting position C
Pris/Price: € 14,90
8130
Momentary switch 2POS-S-OM-AB
2 position, mounting position A and B
Mounting position B cannot be fitted by the customer himself
Pris/Price: € 14,90

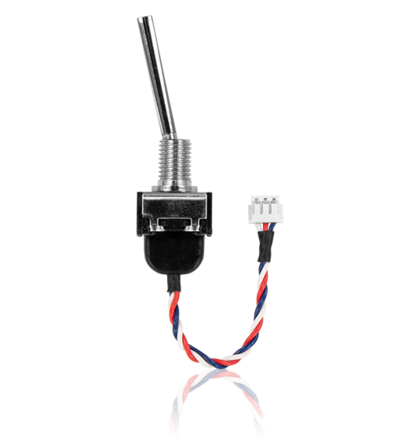

8131
Momentary switch 2POS-L-OM-C
2 position, mounting position C
Pris/Price: € 14,90

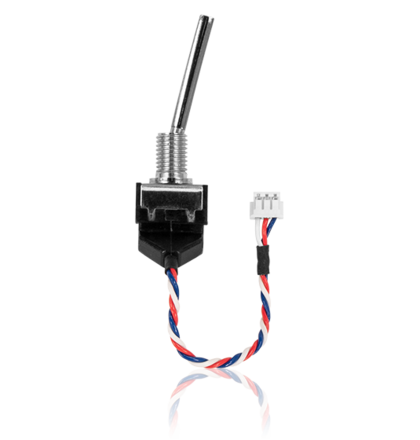

8132
Momentary switch 2POS-L-OM-C
2 position, mounting position C
Pris/Price: € 14,90

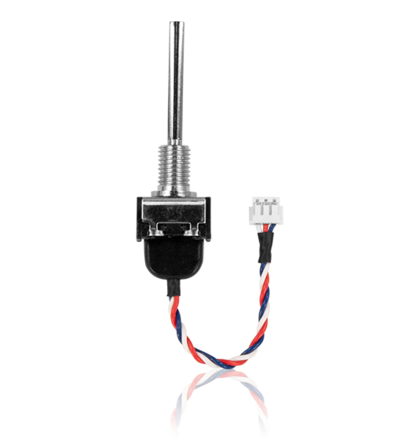

8133
Part momentary switch 3POS-L-OXM-AB
3-position, mounting position A and B
Mounting position B cannot be fitted by the customer himself
Pris/Price: € 14,90

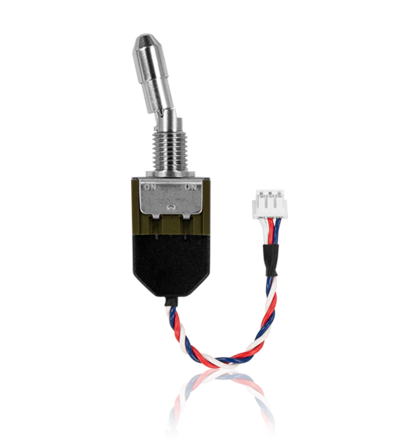

8135
Security switch 2POS-SL-A
2-position, mounting position A
Pris/Price: € 14,90

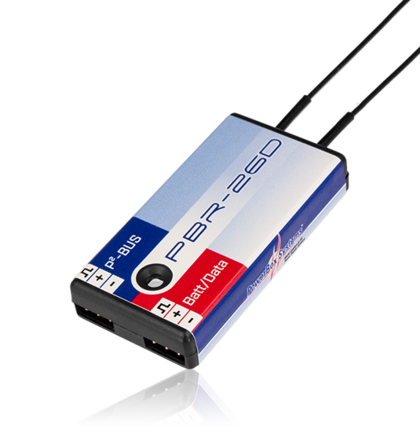

8240

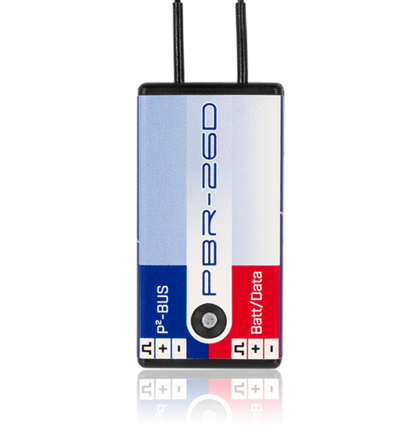

PBR-26D
26 Channel 2.4GHz Receiver
Features
26 Channel 2.4GHz Receiver
Two independent redundant receiver circuits
Extreme interference rejection
Ultra-long range
No servo outputs; intended as receiver unit for PowerBox or FBL systems
Option of iGyro SAT
Integral telemetry / servo bus (P²BUS)
High-performance real-time telemetry
Reception quality and airborne battery voltage available via telemetry as standard
Auxiliary output can be configured as serial interface (S.BUS or SRXL)
Technical Data
Operating voltage4.0V - 9.0V
Supported RC systemsCORE
Channels26
Servo sockets7 (8)
Servo signal resolution4096 Steps
Integral gyro systemoptional with iGyro SAT
Supported telemetry systemsP²BUS
Dimensions52 x 22 x 12 mm
Pris/Price: € 115
8240
PBR-9D
9 Channel 2.4GHz Receiver
Features
9 Channel 2.4GHz Receiver
Two independent redundant receiver circuits
Extreme interference rejection
Ultra-long range
Option of iGyro SAT
Integral telemetry / servo bus (P²BUS)
High-performance real-time telemetry
Reception quality and airborne battery voltage available via telemetry as standard
Auxiliary output can be configured as Channel 10 or as serial interface (S.BUS or SRXL)
Parameters for all functions can be set from the transmitter
Technical Data
Operating voltage4.0V - 9.0V
Supported RC systemsCORE
Channels26
Servo sockets7 (8)
Servo signal resolution4096 Steps
Integral gyro systemoptional with iGyro SAT
Supported telemetry systemsP²BUS
Dimensions52 x 22 x 12 mm
Pris/Price: € 157

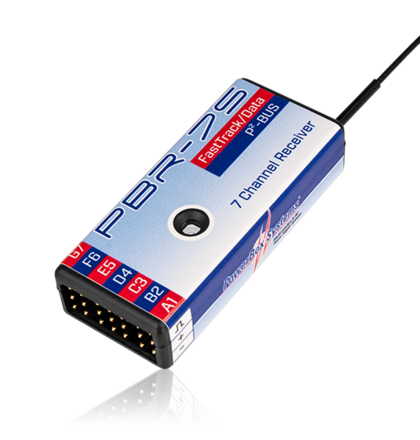

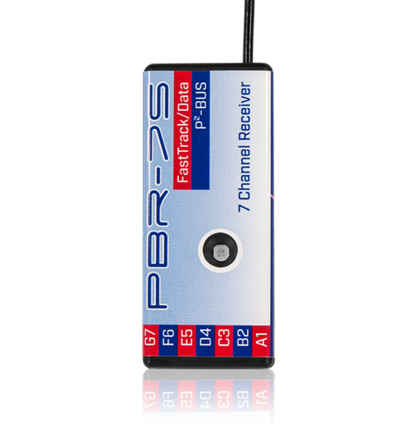

8230
PBR-7S
This is a 7-channel receiver with a single receiver circuit. The unit features a P²BUS interface for servo and telemetry data, and an auxiliary output which can be configured either as SRXL bus or as channel 8. It is also possible to connect the iGyro SAT, allowing the integral iGyro function to be used. If the unit is combined with the PBR-26XS, the internal receive section can be expanded to form a redundant receiving system.
Technical Data
Operating voltage4.0V - 9.0V
Supported RC systemsCORE
Channels26
Servo sockets 7+1
Programmable servo output:
PWM, FastTrack, S.BUS, SRXL, PPM12
Servo signal resolution 4096 Steps
Integral gyro systemoptional with iGyro SAT
Supported telemetry systemsP²BUS
Dimensions52 x 22 x 12 mm
Weight: 12g
Pris/Price: € 94

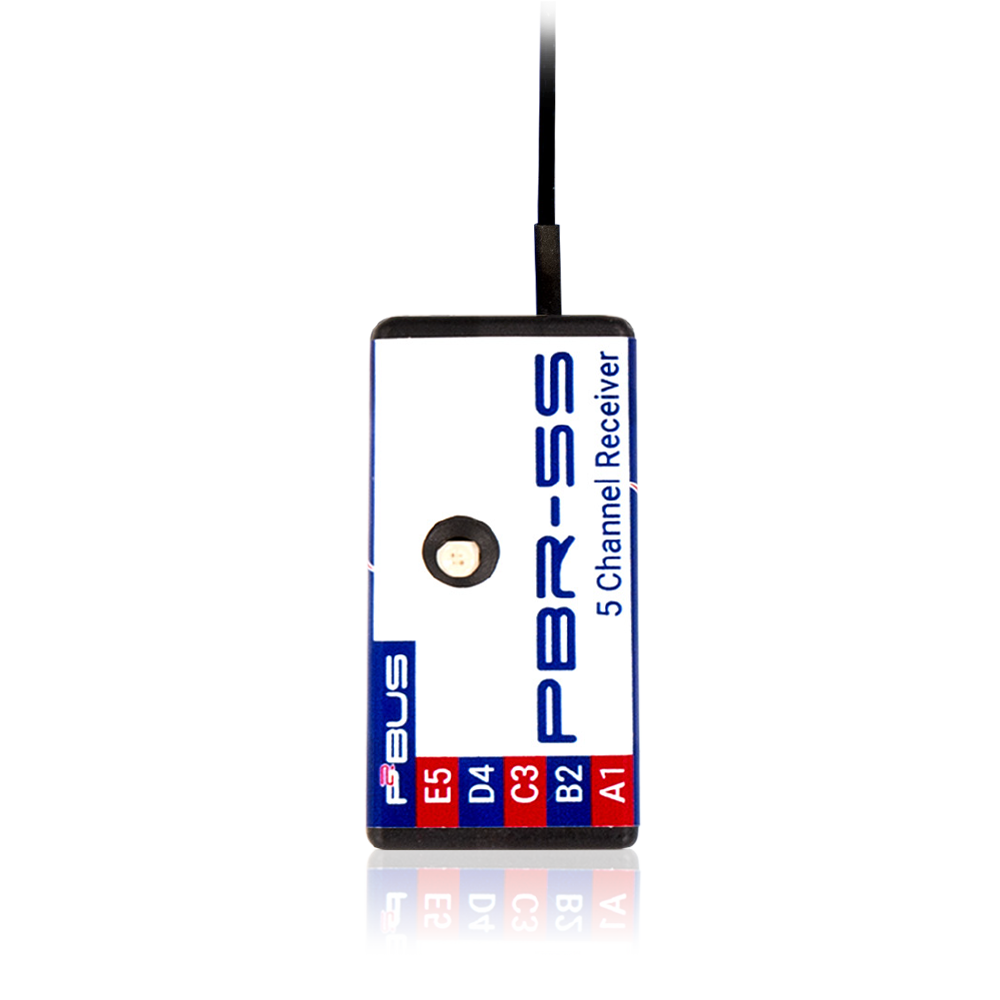

82300

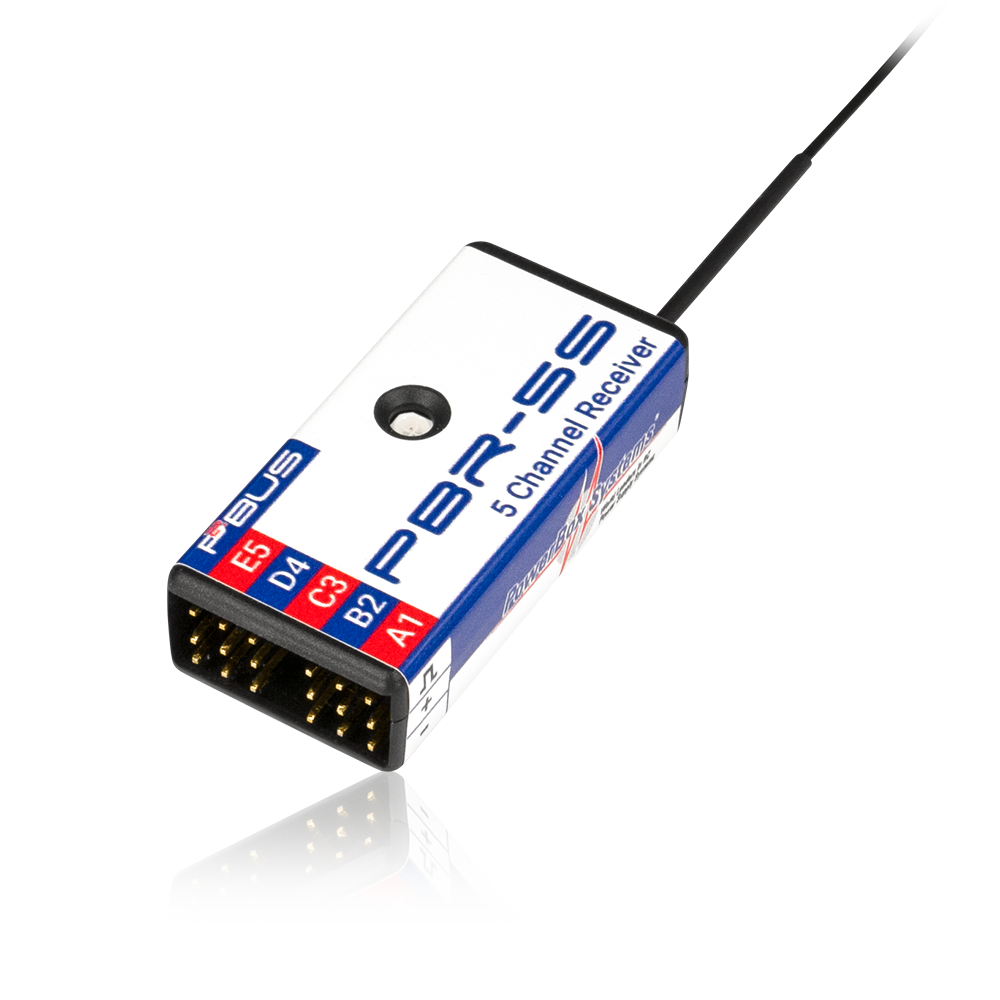

PBR-5S
5 Channel 2.4GHz Receiver
Features
This is a five-channel receiver with a single receiver circuit. The unit features a P²BUS interface for servo and telemetry data, while its minuscule size makes it the natural choice for small models. Output 5 can be set to S.BUS, SRXL or PPM signal from the transmitter; typical applications include use with flybarless systems or flight simulators.
Technical Data
Operating voltage:4.0V - 9.0V
Current drain Power-on state60mA
Supported RC systemsATOM / CORE
Supported telemetry systemsP²BUS
Channels26
Servo sockets5
Programmable servo outputsSRXL, S.BUS, PPM12, PWM
Servo signal resolution4096 Steps
Dimensions44 x 20 x 12 mm
Weight7 g
Temperature range-30°C to +85°C
Pris/Price: € 73
8242

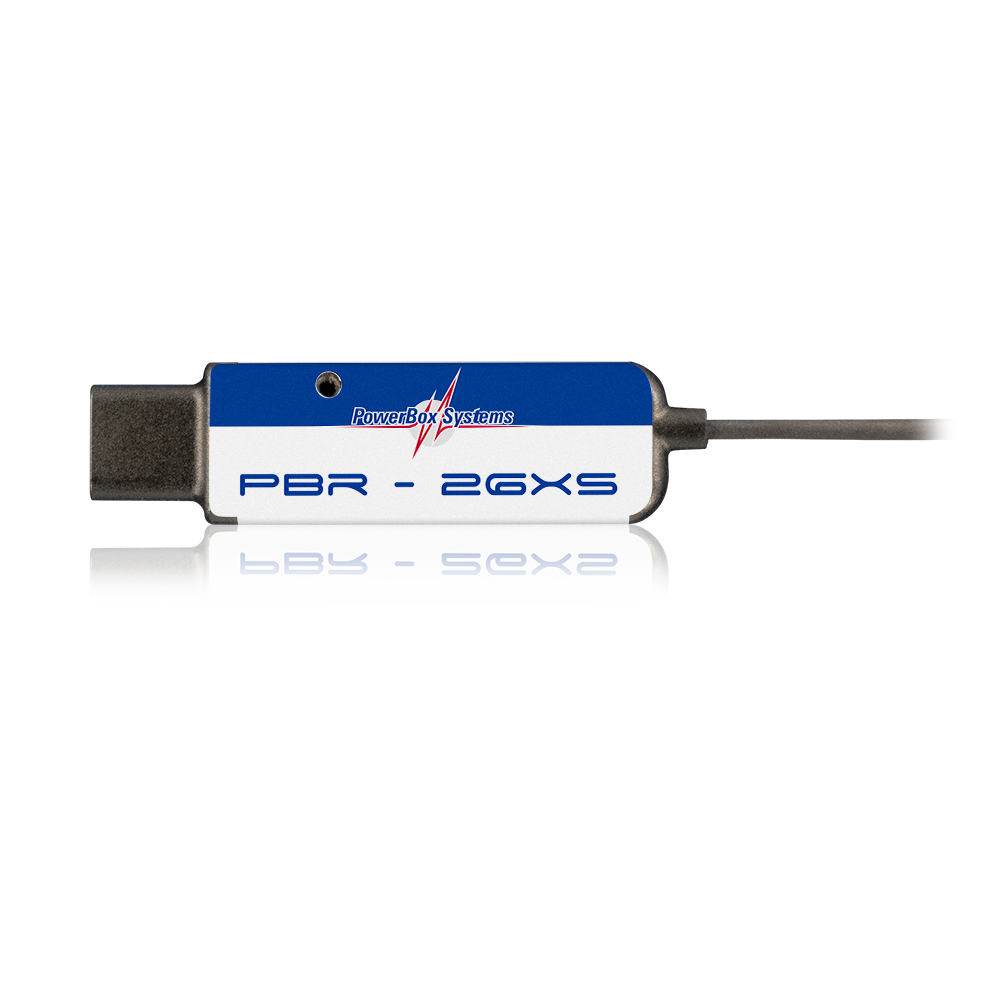

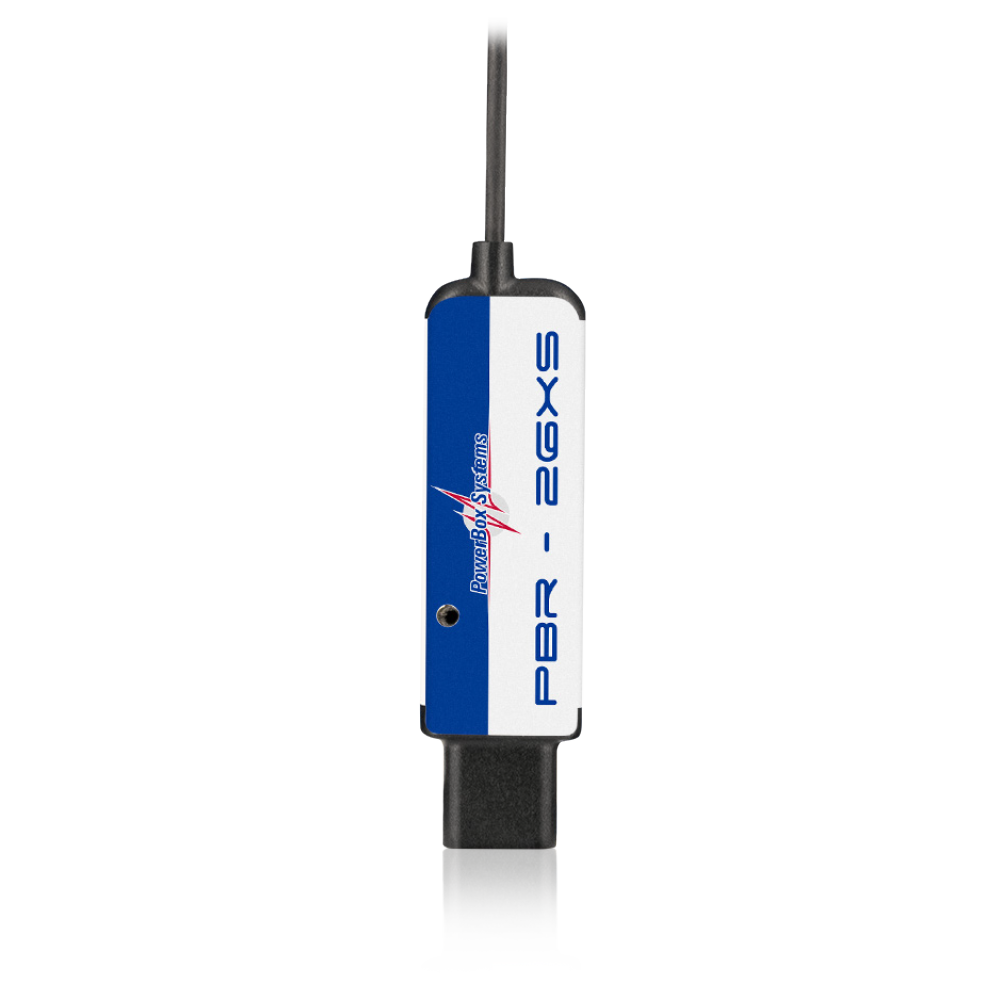

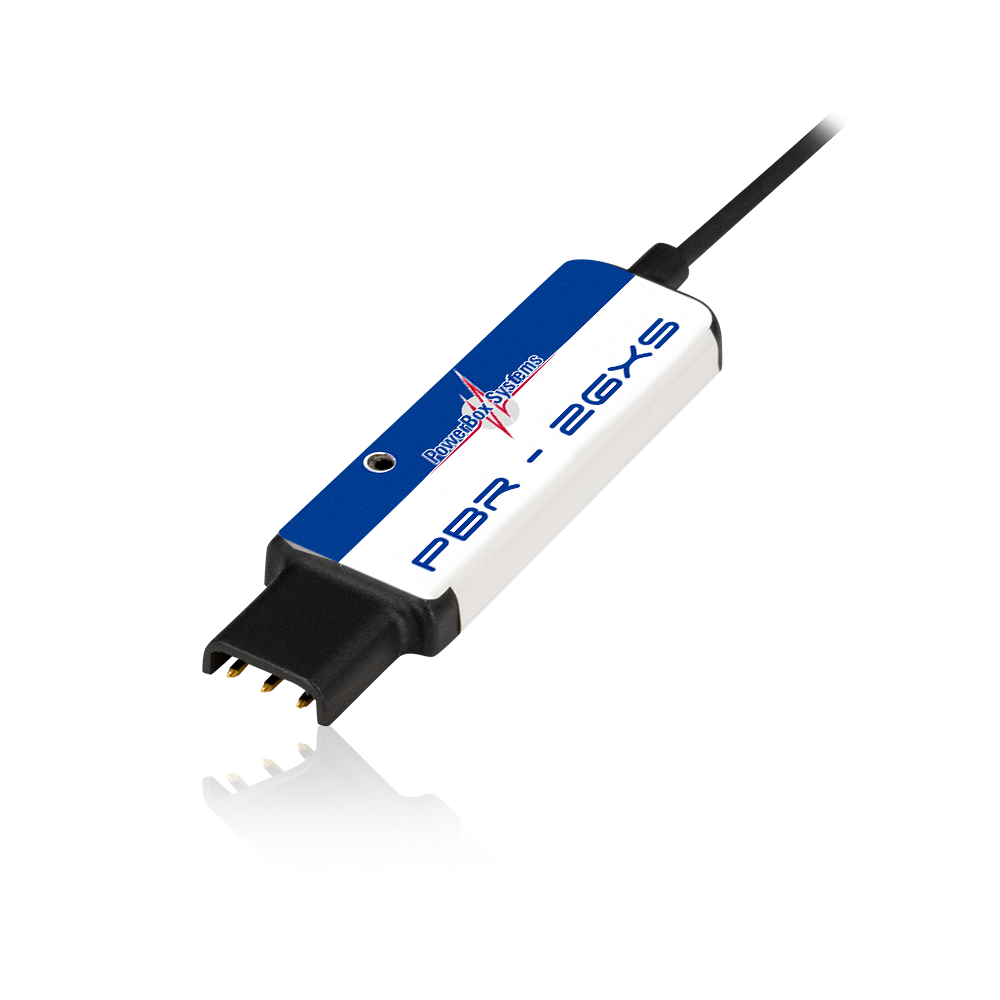

PBR-26XS
26 Channel 2.4GHz Receiver
Features
This is an extremely small satellite receiver fitted with one receive section. The receiver features a P²BUS interface for servo data and telemetry data, and can be connected to any PowerBox power supply. It is possible to set the output to FastTrack-Out, S.BUS, SRXL or PPM. If you select the FastTrack-Out option, the PBR-26XS can be employed as an expansion to the receive sections in existing receivers.
Technical Data
Operating voltage4.0V - 9.0V
Current drain Power-on state58mA
Supported RC systemsATOM / CORE
Supported telemetry systemsP²-BUS
Channels26
Programmable servo outputsPWM, FastTrack, S.BUS, SRXL, PPM12
Servo signal resolution4096 Steps
Dimensions46 x 13 x 4 mm
Weight3 g
Temperature range-30°C to +85°C
Pris/Price: € 83

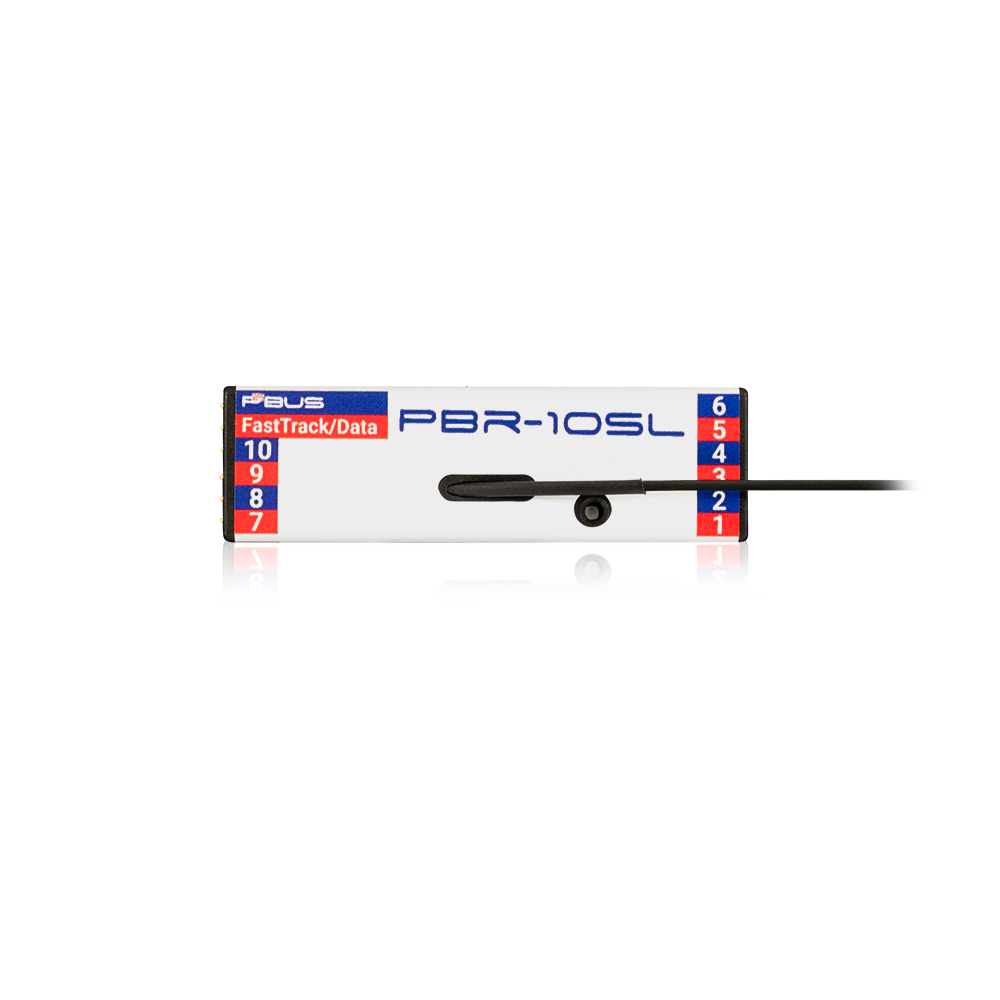

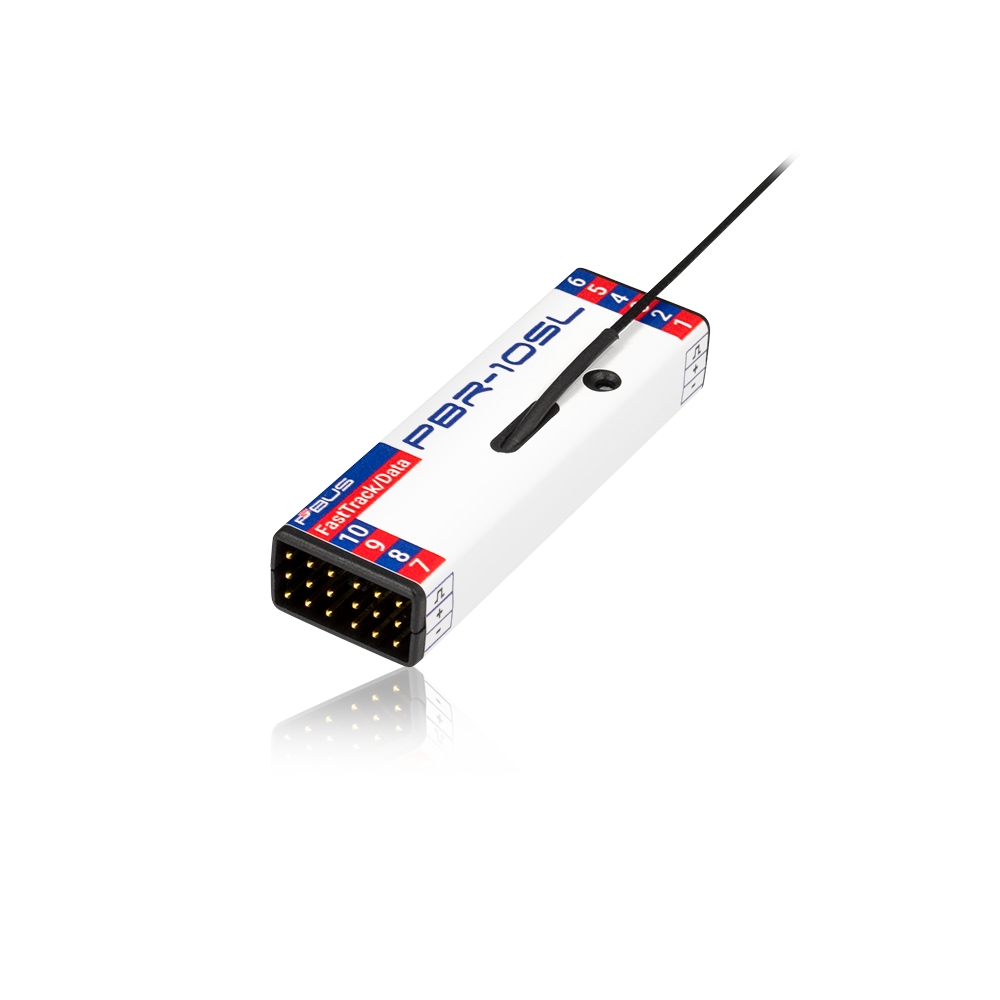

8255

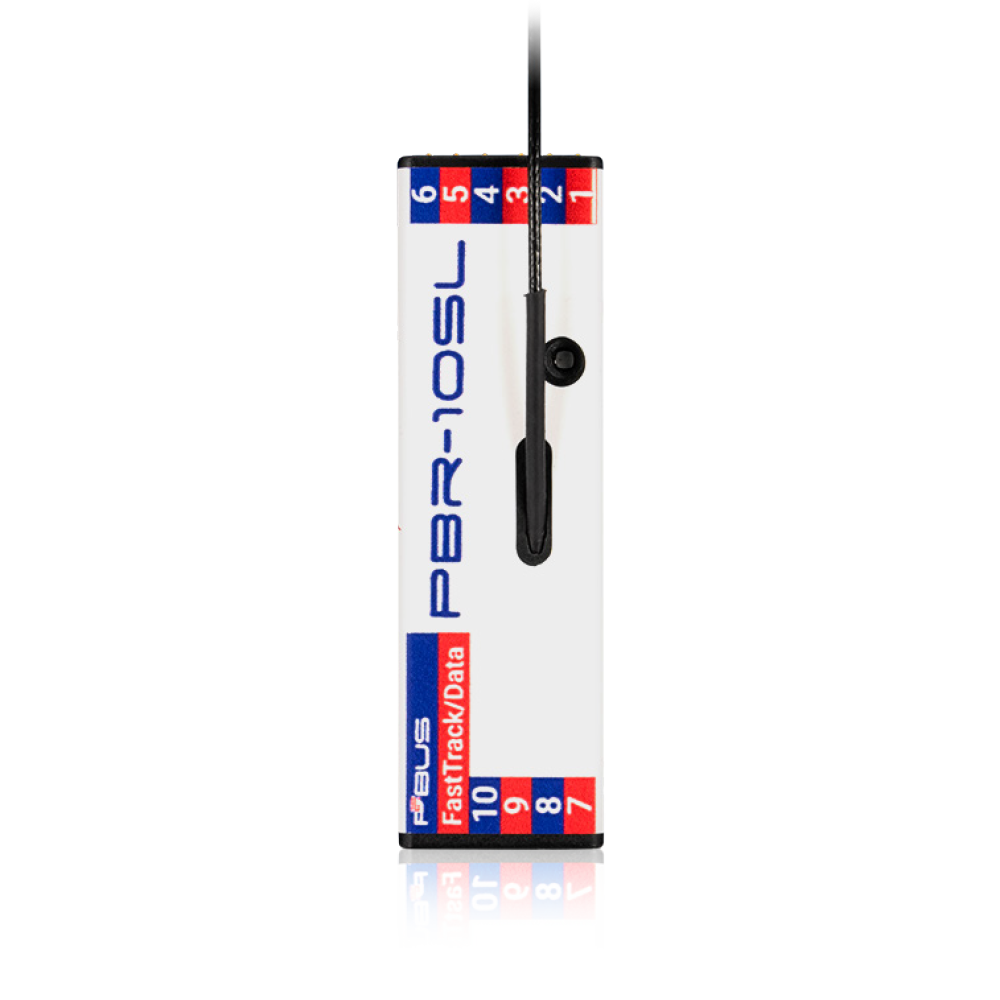

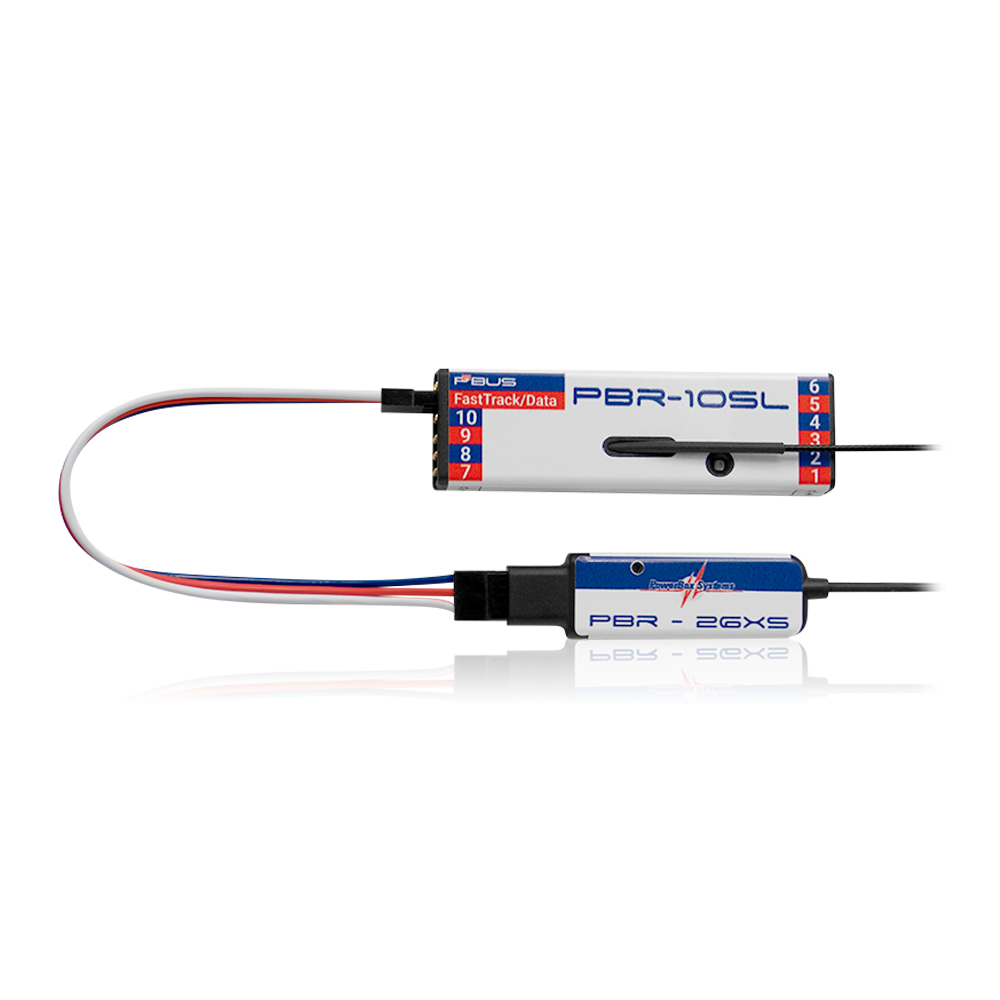

PBR-10SL
10 Channel 2.4GHz Receiver
Features
This is an ultra-slim 10-channel receiver for models with limited internal space. It features one receive section and a P²BUS interface for servo data and telemetry data, plus an additional output which can be set to operate either as the SRXL-Bus or channel 8. It is also possible to connect the iGyro SAT, allowing the integral iGyro function to be used. The internal receive section can be expanded with the PBR-26XS to form a redundant receiving system.
Technical Data
Operating voltage4.0V - 9.0V
Current drain Power-on state58mA
Supported RC systemsATOM / CORE
Supported telemetry systemsP²-BUS
Channels10 + 1
Programmable servo outputsPWM, FastTrack, S.BUS, SRXL, PPM12
Servo signal resolution4096 Steps
Dimensions60 x 18 x 10 mm
Weight12 g
Temperature range-30°C to +85°C
Pris/Price: € 115

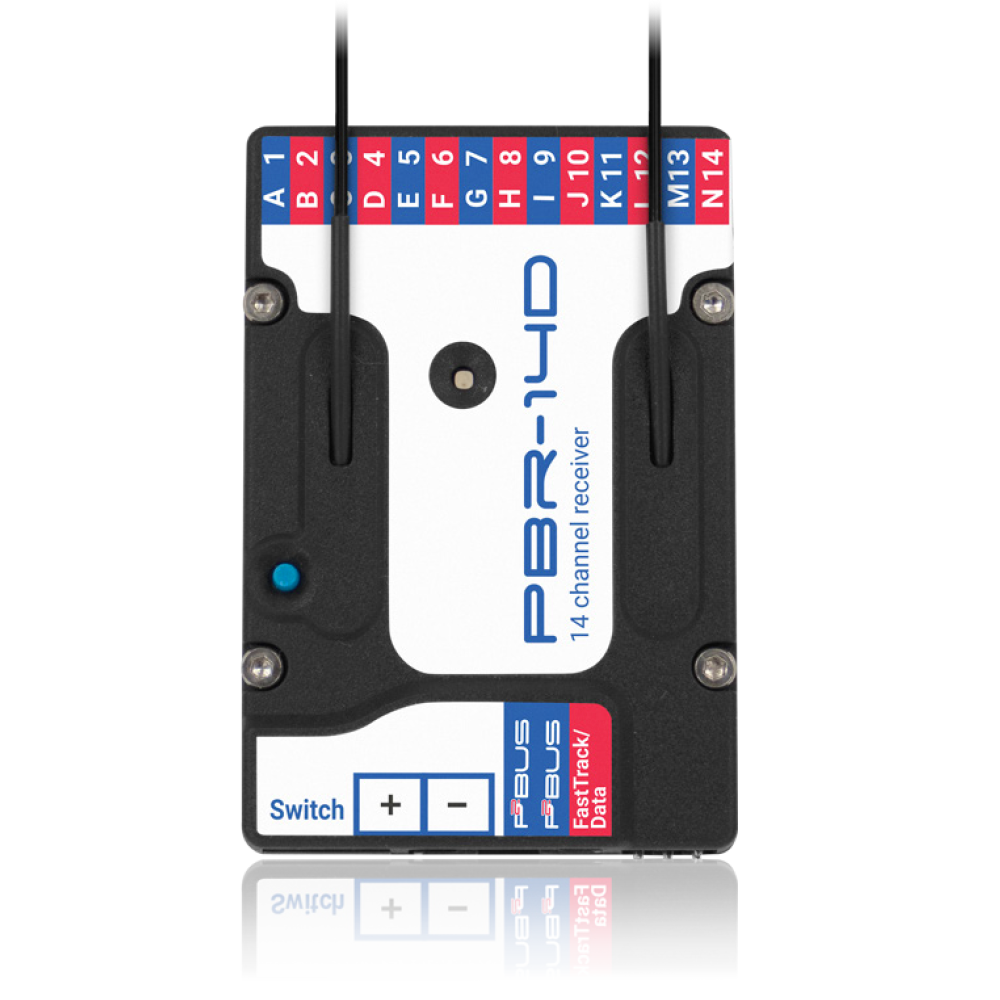

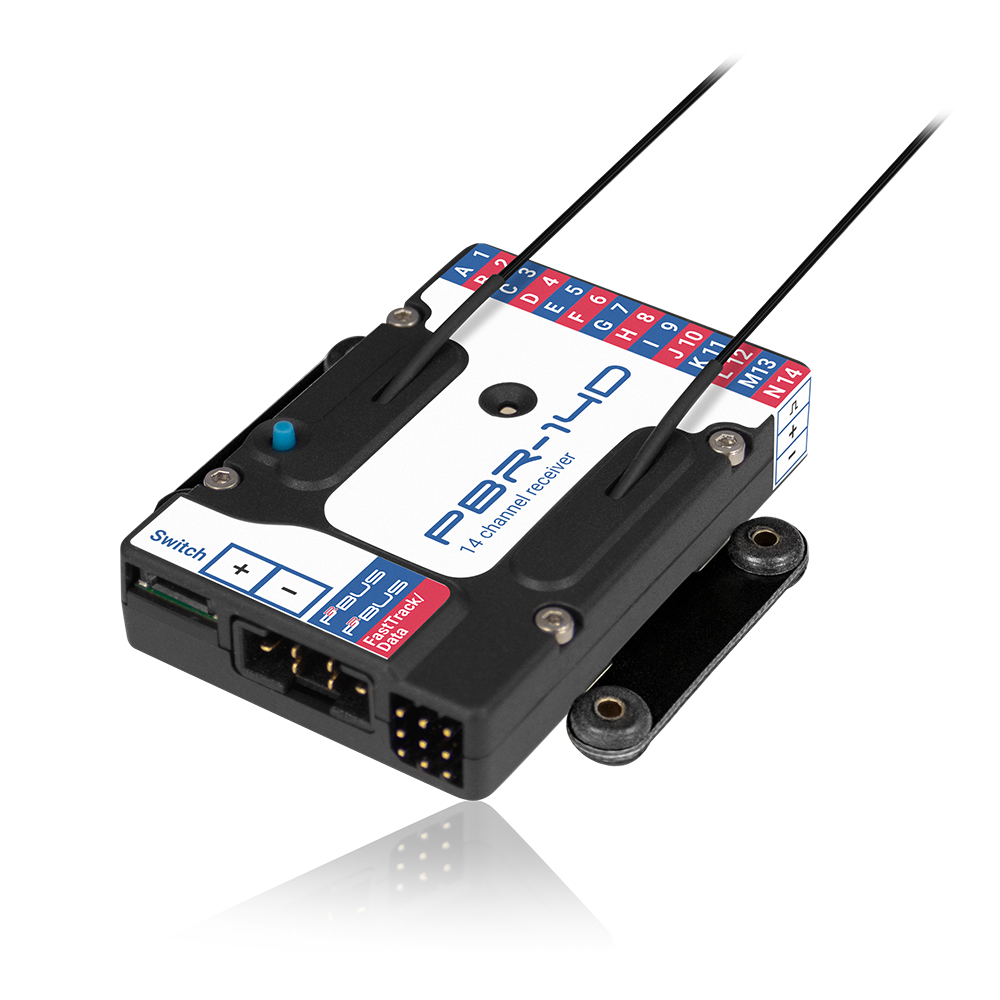

8244

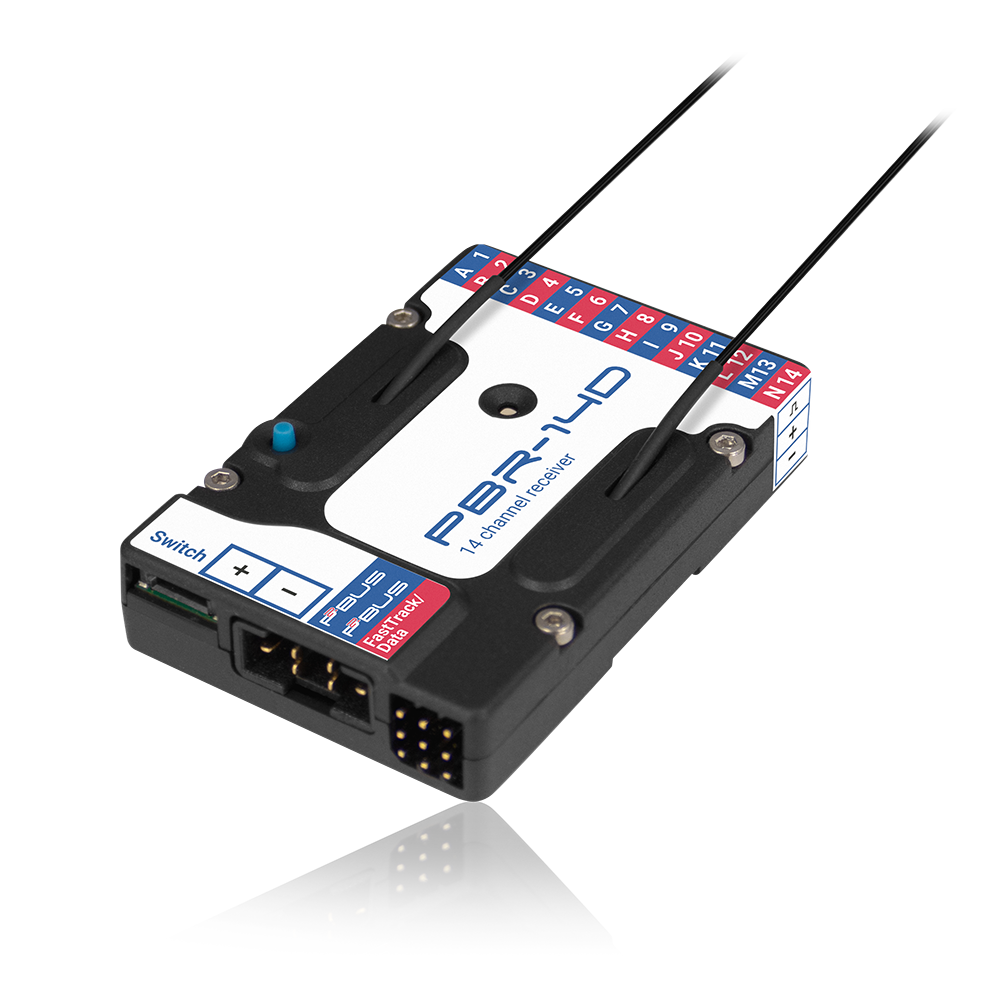

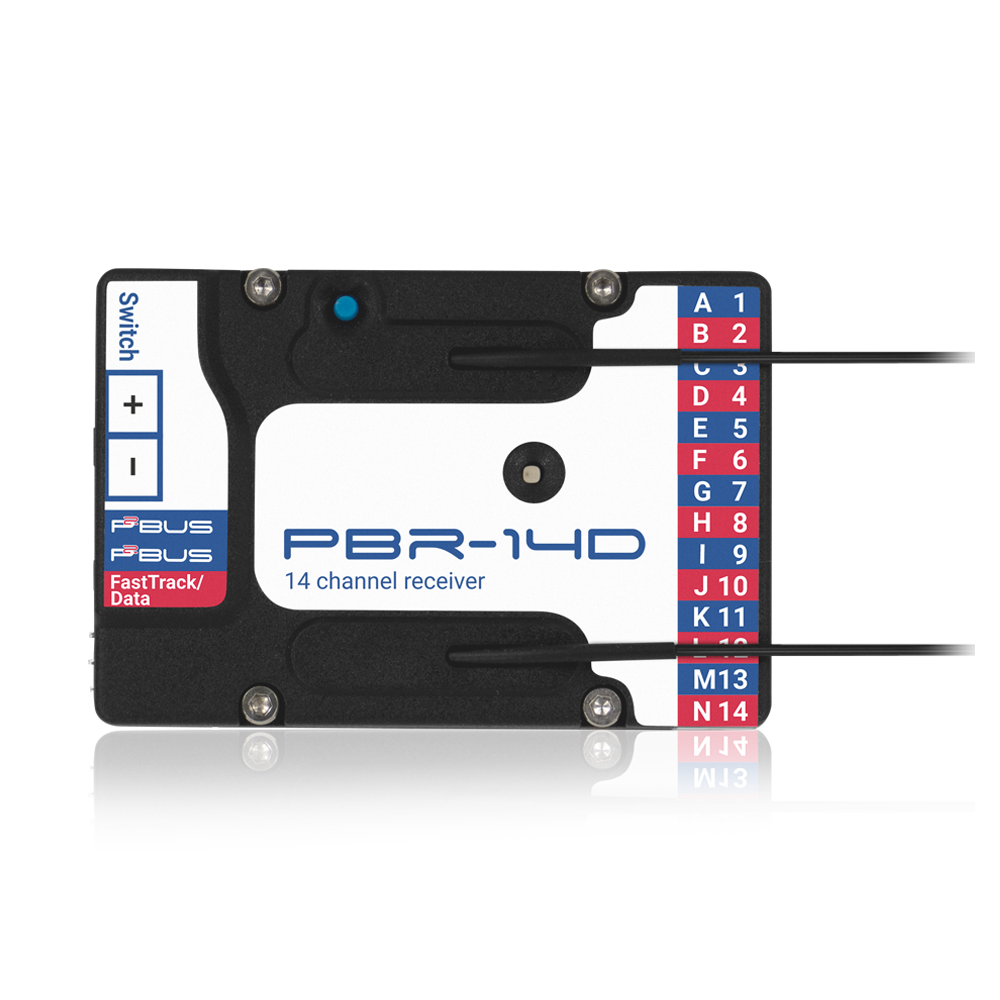

PBR-14D
A 14-channel receiver with two redundant receive sections. One special feature is the integral electronic 20A switch which can be operated using either the integral blue push-button or an optional MicroSwitch. The battery is connected to the MPX high-current socket, which ensures that reliable power is available for all fourteen servo sockets.
The unit features two P²BUS interfaces for servo and telemetry data, and an auxiliary Data/FastTrack output which can provide 3rd Party bus interfaces or channel 15. It is also possible to connect the iGyro SAT, allowing the integral iGyro function to be used. If the unit is combined with the PBR-26XS, the internal receive sections can be expanded by one additional receive section.
Technical Data
Operating voltage4.0V - 9.0V
Current drain Power-on state105mA
Supported RC systemsATOM / CORE
Supported telemetry systemsP²-BUS
Channels14
Programmable servo outputsFastTrack, SRXL, S.BUS
Servo signal resolution4096 Steps
Gyro system, software integratedoptional with iGyro SAT
Dimensions62 x 42 x 13 mm
Weight29 g
Temperature range-30°C to +85°C
Pris/Price: € 220

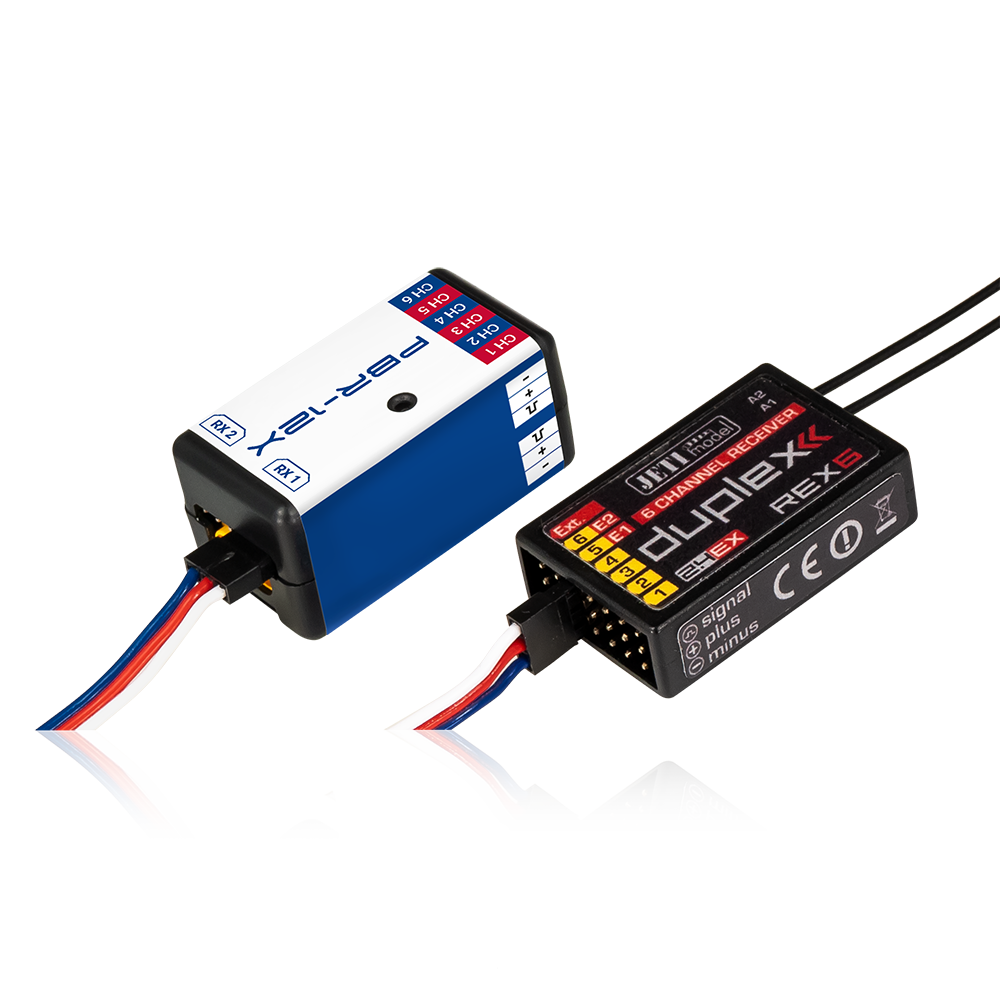

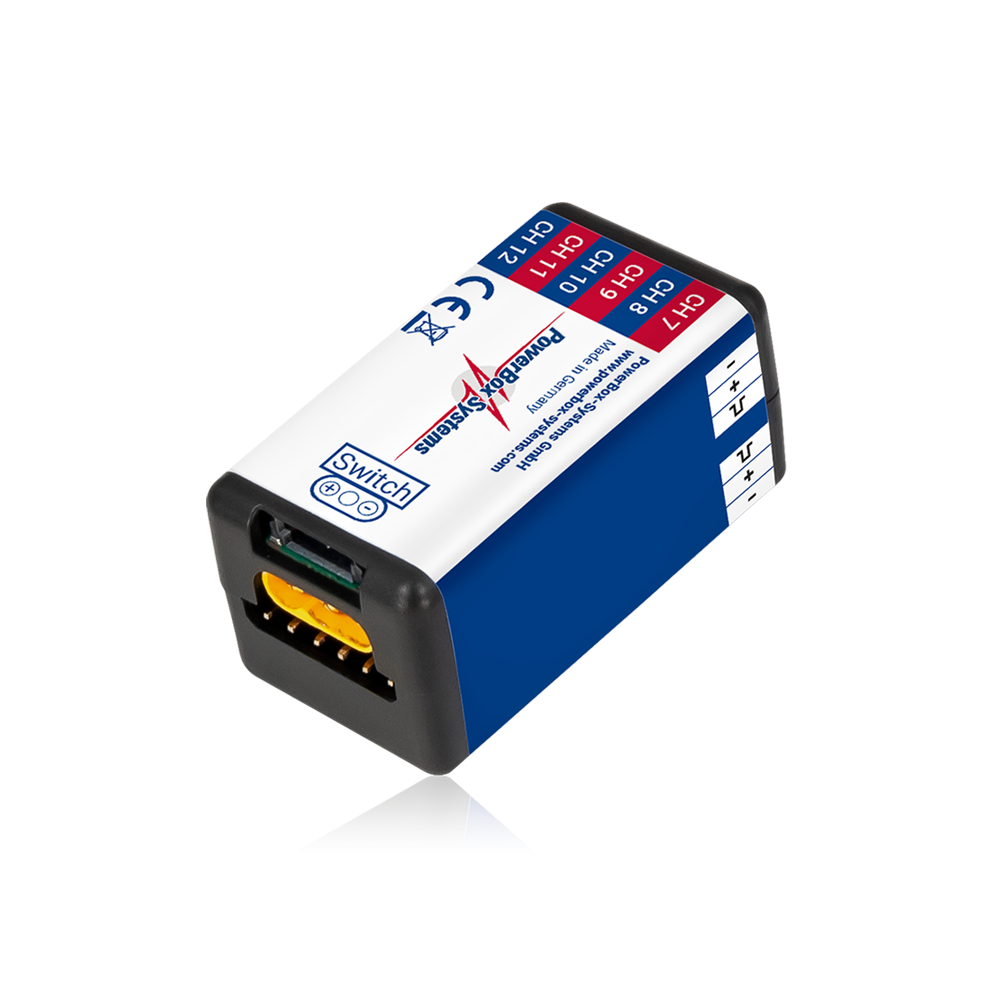

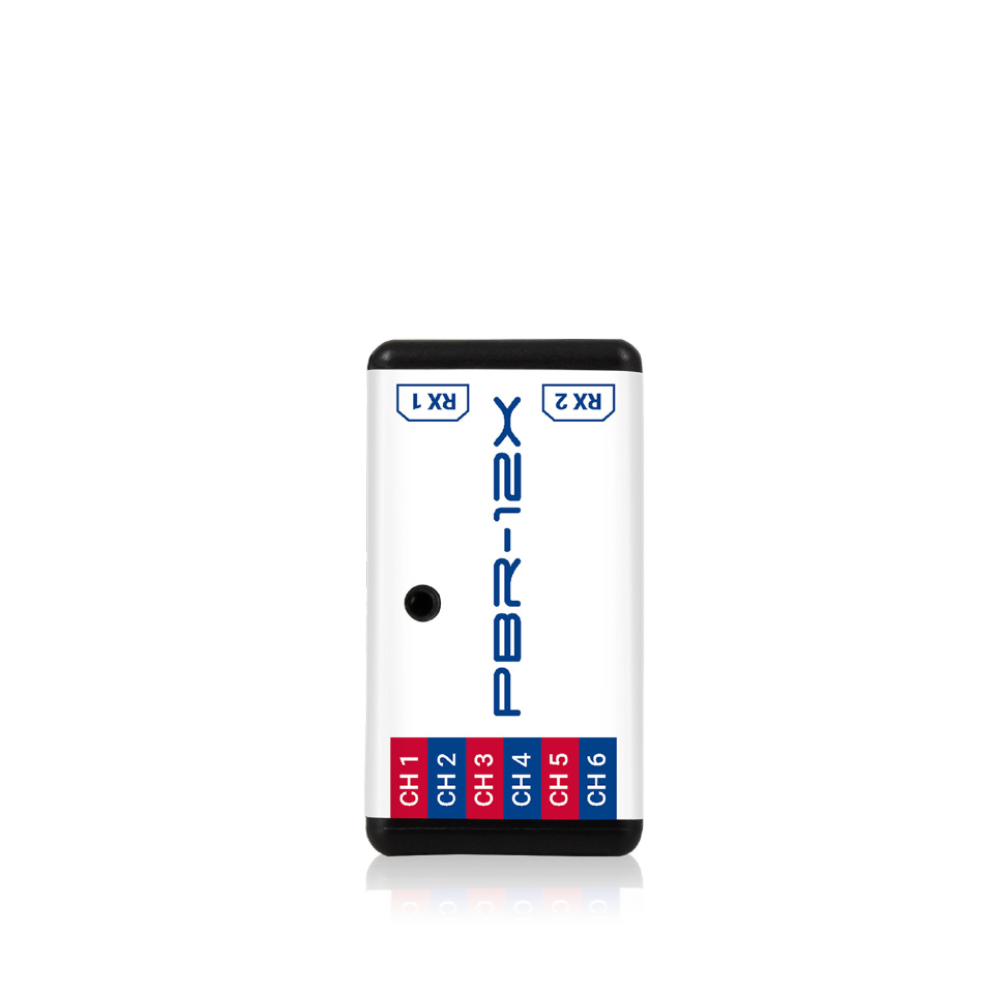

8260

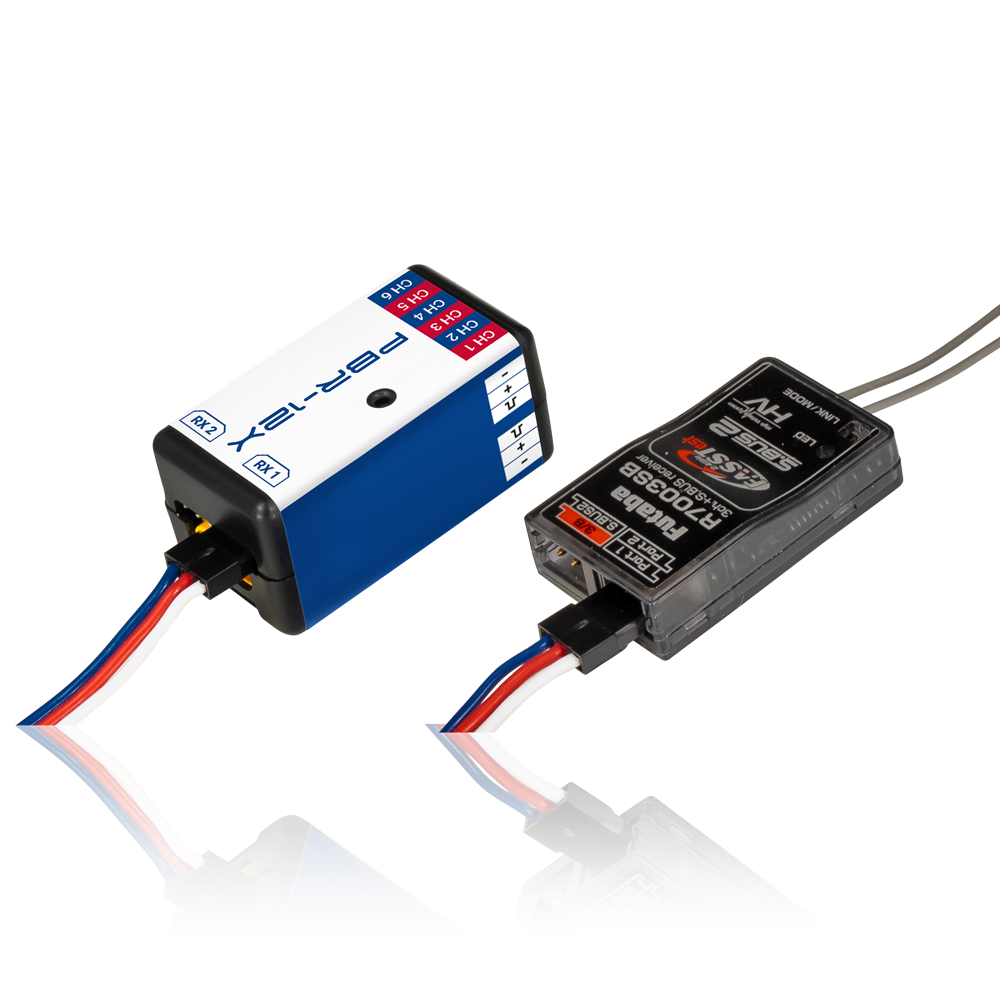

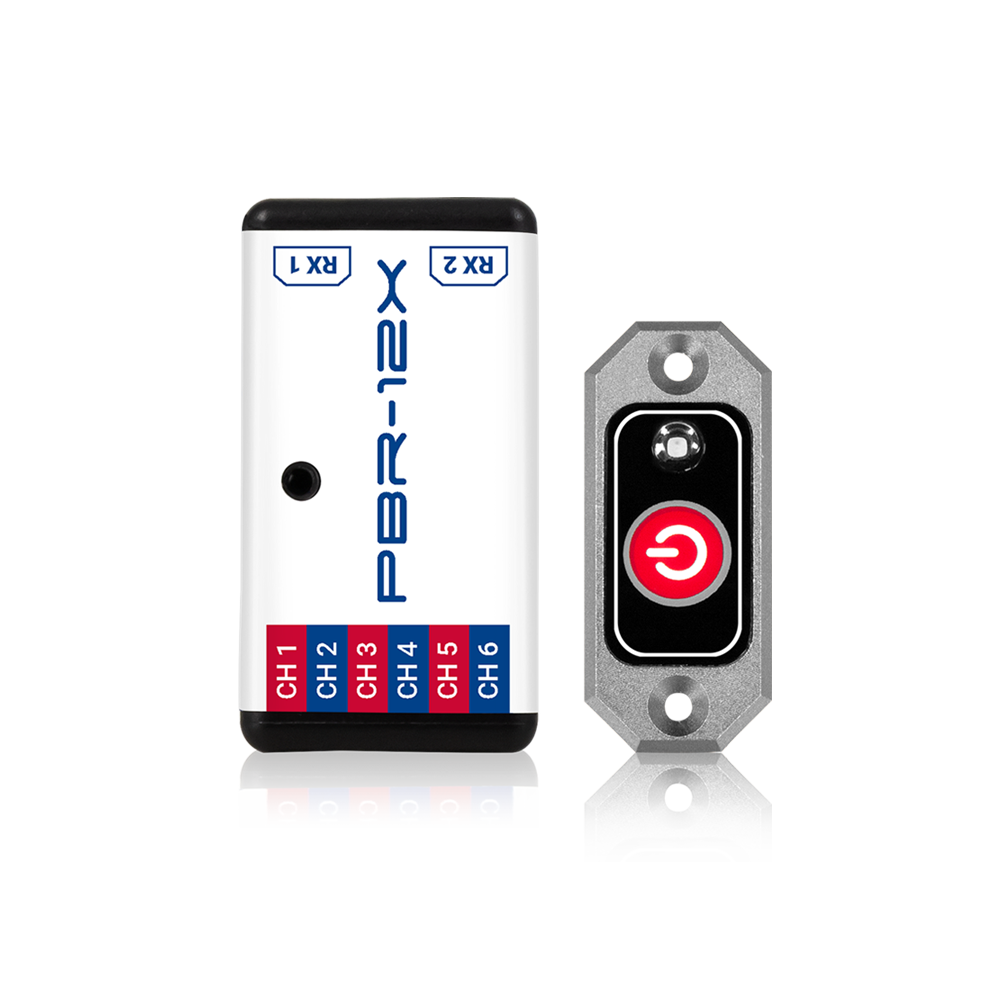

PBR-12X
The PBR-12X is ideal for use in any model where space is limited, but where a large number of channels is required. The square arrangement of the servo sockets allows the PBR-12X to fit even in very narrow fuselages, such as those of, F5J- and F3B-gliders.
The integral electronic switch is operated using our MicroSwitch. If there is no space for this, the PBR-12X can be activated simply by plugging in or disconnecting the battery, as it stores the last switched state.
The unit features an integral high-current input with a compact MR30 connector in order to cope reliably with the current drain of twelve servos. An MR30 to MPX adapter is included in the set.

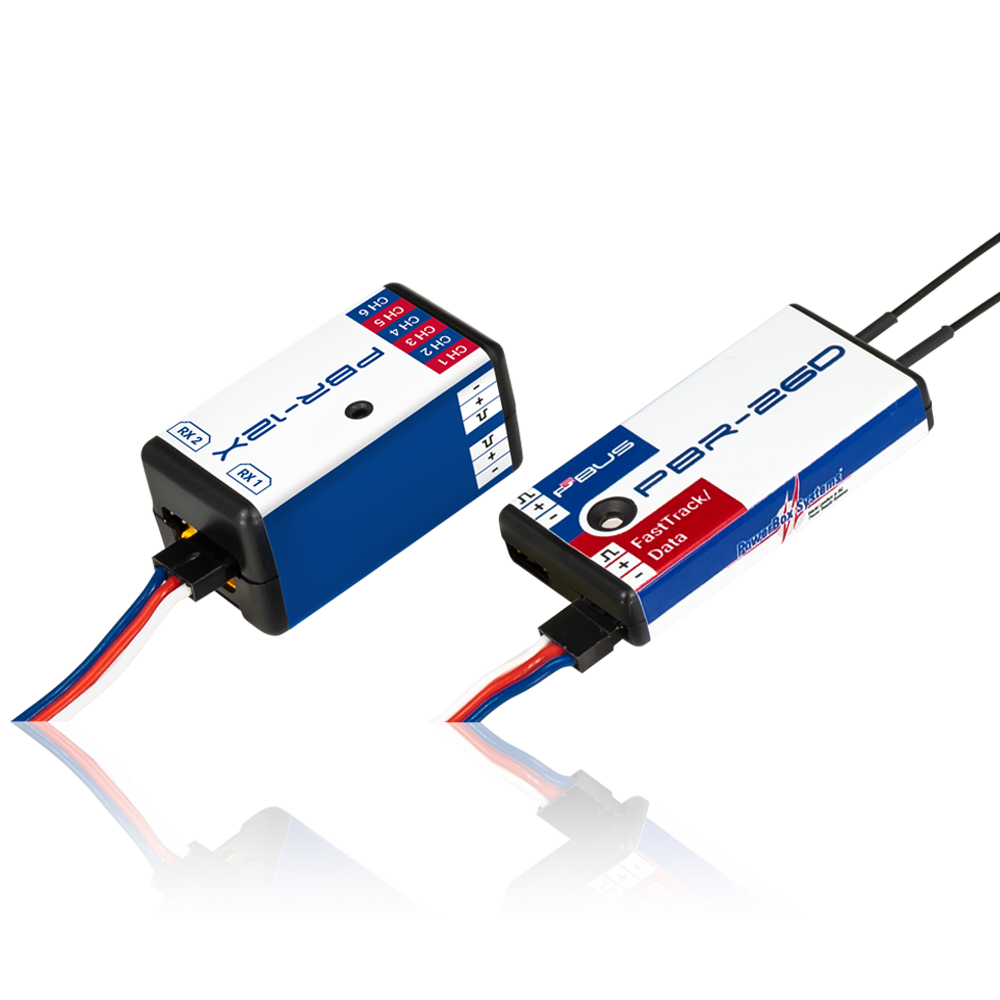

Any receiver with a bus output can be used as the receiving component. The unit automatically detects the bus system to which it is connected, which means that no set-up work is required apart from setting the fail-safe positions. Two receivers can be connected to form the basis for a redundant receiving system. If the PBR-12X detects lost data packets from the first receiver, they are replaced with the data from the second receiver; there is no loss of data.
The advantage of separating the receiving section from the servo output is that the receiving component can be installed in the optimum location in the model. For example, if your model has a high carbon fibre content in the area of the wing - fuselage junction , you can install the receiver in the fin.
The PBR-12X supplies telemetry data to all the listed radio control systems. In addition to battery voltage, the telemetry output includes current and consumed capacity. Reception data, such as lost frames or holds, are also delivered to most systems.
Feautures:
+ 12 channels
+ Electronic switch
+ MR30 high-current input
+ Two serial inputs for the receiving system
+ Automatic RC system detection
+ Telemetry data for PowerBox P²BUS, Jeti Ex-BUS, Spektrum and Futaba S.BUS2
+ Transfer of voltage, current, capacity, lost frames and holds
+ User-variable servo frame rate: 10ms, 12ms, 14ms, 16ms, 18ms
+ All features can be controlled from PowerBox and Jeti transmitters
+ All systems can control unit via PowerBox-USB
+ Servo feedback current suppression
+ Machined and anodised aluminium switch case
+ Space-saving design
+ Ultra-low weight
Pris/Price: € 146
Samtliga priser är i Euro ( € ) inkl. 25% moms. Fraktkostnader tillkommer.
All the price are in Euro ( € ) inclusive 25% VAT. Delivery cost it´ll be add.
