Data:

Length:
2450mm
Wingspan:
2300mm
Weight:
12Kg w/o fuel
Power:
12 - 14Kg Thrust
PRICE LIST:

Kit  Tuono NRG white gelcoated                               2190 €
Stainless steel pipe                                                     160 €
Fuel tanks 3,5 liters ( pair )                                          280 €
Under wing tank ( pair )                                               200 €

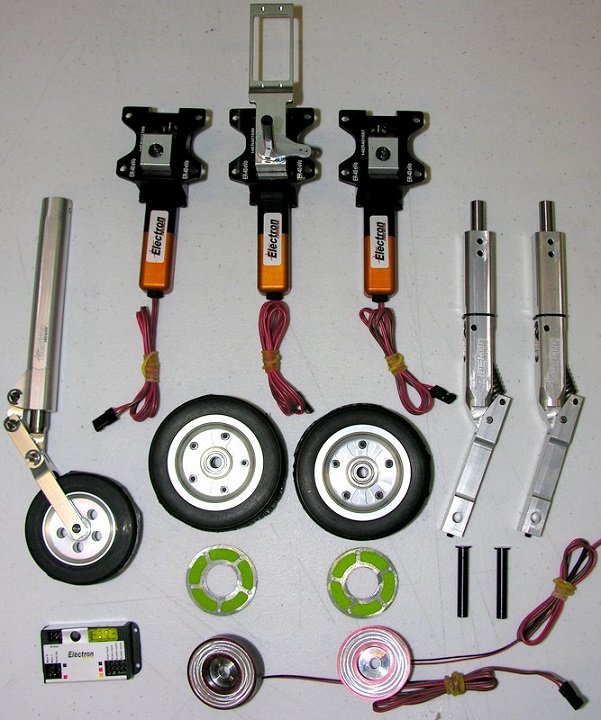

Landing gear set with breaks                                      900 €
Wiring cable set, complete with connectors               200 €
Building service include material                             1000 €
Painted included material                                        1500 €
Transport bag                                                             250 €
The price is in Euro ( € ) and includ 25% VAT. For more information please contact us by
e-mail to:
tzimport@comhem.se

Priserna δr i Euro ( € ) . Ring ( 0705438673 ) eller majla oss (
tzimport@comhem.se ). Dem lδgsta priser pε marknaden utlovas.
DSC_0021
DSC_10005
DSC_10011
DSC_10009
DSC_0019

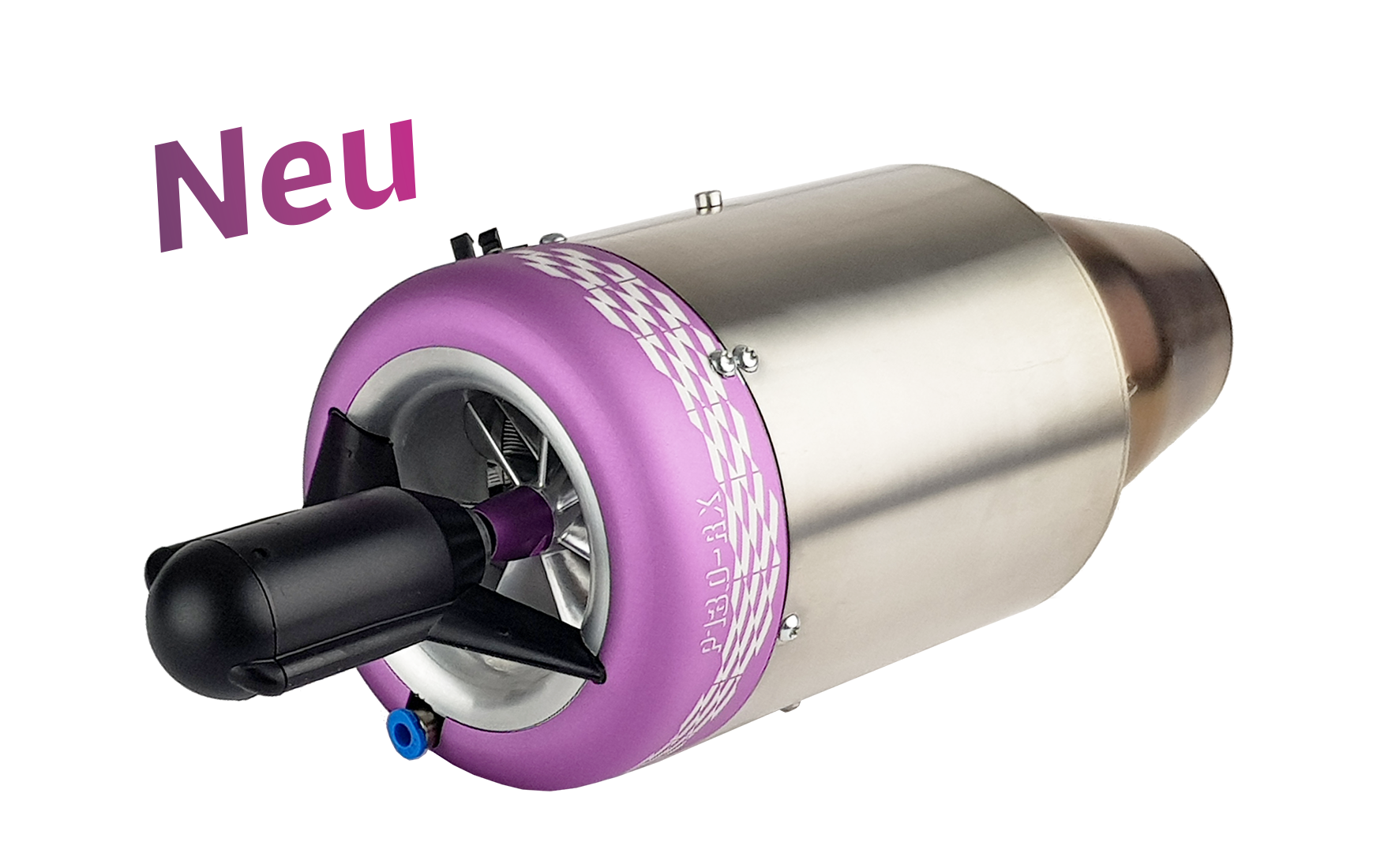

Jet-Cat P 140 RX:
Thrust: 14,2Kg
Weight: 1590g
Diameter: 112mm
Length: 320mm
RPM range: 33000 - 125000 RP/min
Exhaust: 710 C
Fuel: Jet-A1 med 5% oilmix  ( turbinoil
Fuel consumpsion: 510 ml/min to the highest RPM
Maintenance interval:  50 timmar/Hours

Pris: € 2590 ( before € 2790 )
P140-RX-2
NG
DSC_0020
DSC_10012
DSC_10014
DSC_10015
DSC_10016
DSC_10163
DSC_10135
DSC_10138
DSC_10141
DSC_10144
DSC_10146
DSC_10159
DSC_10160
DSC_10162
DSC_10137
B100F TURBINE:
Diameter: 99mm
Length: 296mm
Weight Turbine: 1080g
Weight Periphery: 420g
Max Thrust: 120N at 133.000 rpm
Min Thrust: 5N at 38.000 rpm
Consumption: 365ml, 269g at 100N
Exhasut Temperature: 670 - 740 celsius
Fuel: Kerosene, Diesel, Petroleum
Acceleration 38k - 133k rpm: 3,4sec.
Pressure ratio: 2,8:1

PRICE: 2299 €
B100F
TURBINE SET CONTENTS:
JB-130 TURBINE WITH ELECTRIC STARTER, ECU ( ENGINE CONTROL UNIT ), GSU ( GROUND SUPPORT UNIT ), SET OF CABLES, PRO JET MANUALS, KEROSENE PUMP TYPE P7-2, KEROSENE FILTER, PROPANE FILTER, FELTCLUNK, CLUNK ADAPTER, TUBING FOR KEROSENE AND PROPANE, GLOWPLUG WRENCH, TYGON TUBING, ONBOARD GAS TANK, TURBINE MOUNT, TURBINE HANDBOOK, TESTRUN CERTIFICATE.

   SPECIFICATION:
DIAMETER: 113mm
LENGHT: 325mm
WEIGHT: 1500g
MAX THRUST: 135N TO 120.000 rpm
MIN THRUST: 7N TO 35.000 rpm
FUEL CONSUMPTION MAX THRUST:  500ml/min
EXHAUST TEMPERATURE: 650 *C
FUEL: JET A1, DIESEL, PARAFFIN ( +5% TURBINE OIL )
PRICE: 3199 € JB-130G ( GAS START )
PRICE: 3353 € JB-130K ( KEROSEN START )

JB130
