For more information please contact me by email:   tzimport@comhem.se , tel.nr.: +46 70 5438673
All price are in Euro ( ) including 25% VAT. Shipping cost will be add.

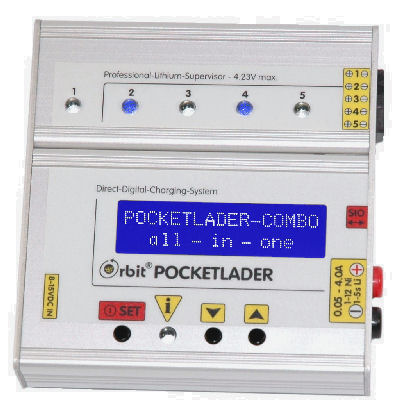

Pocketlader-Combo V3
Artikel nr. 0645 Pocket Charger V3 Combo
Specifications:
INPUT MPX: 8 - 15 VDC max. 5 A
OUTPUT 4mm: up to 21,5 V / 5 A according to 1-12(14) Ni or 1-5s Lithium cells
BALANCER up to 5s: 3,4 - 4,23 V / max. 1 A equalizing
POWER: 10 - 65 W adjustable
DISCHARGE: up to 3 A, but max.7 W
LC-DISPLAY: 2 x 16 characters backlighted
DIMENSIONS: 110 x 107 x 24 mm
SIO-INTERFACE: 3,5mm Stereo TTL
Included items: POCKETLADER-COMBO, 12V-power leads with gold-plugs, balancer-adapter, english manual.

Pris/Price: 152

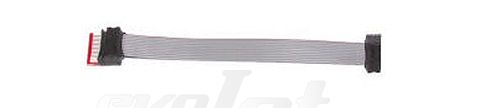

0646 Combo Battery Adaptor
Artikel nr. 0646 Combo Battery Adaptor
LiPo-Battery Adaptor up to 5s

Pris/Price: 8

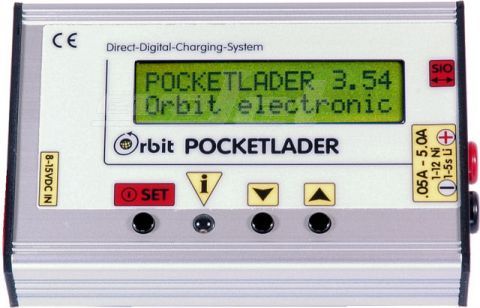

Pocket Charger V3
Artikel nr. 0640 pocket Charger V3
Specifications
INPUT: MPX-JACK; 8V - 15VDC max. 5A
OUTPUT: 4mm-JACK; 1V - 21.5V / 50mA - 5A
according to 1-12(14) Ni or 1-5s Lithium
POWER: 10W - 65W, 80W PEP
DISCHARGE: 50mA - 3A max. 7W
LC-DISPLAY: 2x16 character BL
DIMENSIONS: 110 x 110 x 24 mm
SIO-INTERFACE: 3,5mm Stereo TTL
Included items: POCKETLADER, 12V-power leads with gold-plugs, english manual.


Pris/Price: 110

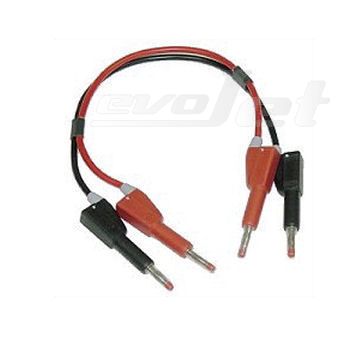

Charging Lead 4mm_0365
Artikel nr. 0365
This high-flexible and robust charging cable is suitable for daily use with all battery chargers. Its 4-mm multi-contact plugs are touch-protected on both sides, and each plug offers an additional connector jack for multiple connections.

Length: 20 cm
Wire size: 2.5 mm2

Pris/Price: 18

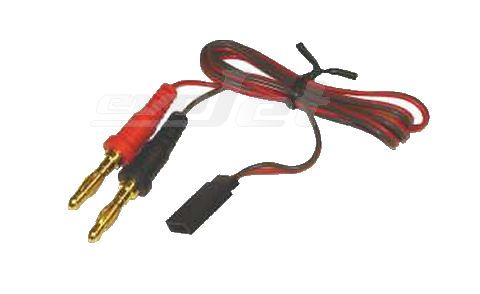

Charging lead JR Rx_0370
Artikel nr. 0370
This flexible JR-charging cable is suitable for daily use with all battery chargers. Its 4-mm multi-contact plugs are gold plated and gives excellent connection.
Length: ca. 60 cm

Pris/Price: 7
Charging Lead Futaba Rx_0371
Battery Chargers

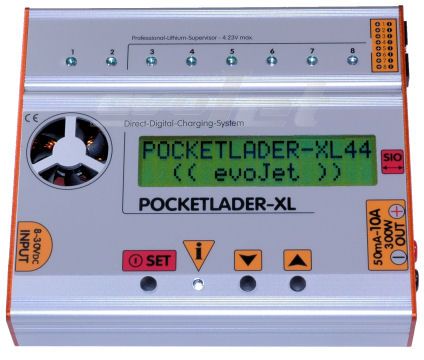

Pockret Charger XL-V4
Artikel nr. 0630 Pocket Charger XL V4
Specifications:
INPUT MPX: 8V - 32 VDC max. 18 A
OUTPUT 4mm: up to 33.6 V / max.10A according to 1-20 Ni or 1s-8s Lithium cells
BALANCER up to 8s: 3.4 - 4.23 V / max. 1 A balancing
POWER: up to 300 W adjustable
DISCHARGE: up to 3 A, max. 25 W
LC-DISPLAY: 2 x 16 characters 10 mm backlighted
DIMENSIONS: 164 x 145 x 35 mm
SIO-INTERFACE: 3,5mm Stereo TTL
Included items: POCKETLADER-XL, 12V-power leads with gold-plugs, EH balancer-adapter G2,G3,G4,G5,G6, english manual.


Pris/Price: 250

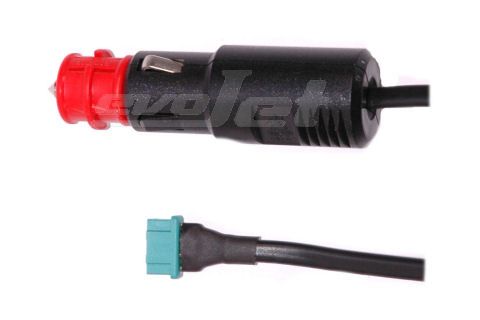

Car adapter 12V_ 0612
Artikel nr. 0612 Car Adapter 12V
Car adaptor 12V harness for the cigarette-lighter with MPX plug.
Length: 1,5 m
Wire size: 1.5 mm2


Pris/Price: 12

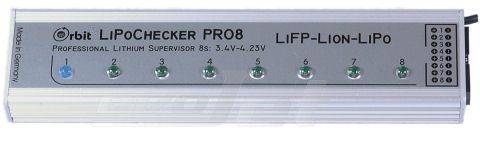

Artikel nr. 0688 LiPo Checker PRO8
The LiPoChecker pro8s is a voltage checker and a balancer / equalizer for LiFe+Lion+LiPo Lithium batteries combined in one device. Eight separate circuits allow the LiPoChecker pro to balance battery packs up to 8s and a maximum charging voltage of 4.22 V per cell. This can be done preferably during charging, but also afterwards or during a full test of the battery pack. The LiPoChecker pro8 universal connector system (16pin header), known from Personal Computers, is easily available and allows an easy adaptation to common connector systems, such as Graupner, robbe, Thunderpower, Tanic, Polyquest etc. Ready-to-use adapters are available from evoJet.de. An additional SIO feedback line allows voltage data of the individual cells to be sent to the POCKETLADER or MICROLADER battery chargers. That way, alarm states can be easily detected (closed loop) and the charging result can be optimised even with old or low-grade battery packs.
Connector: 16 pin male header
Operating voltage: +2.1V to +4.5V per stage
Diversion: max.1000mA
Balancing: 3.4V - 4.23V
Dimensions: 41 x 16 x 160 mm / 1.6 x 0.6 x 6.3
Choose between the versions:
A: 16 pol. Header connector with flatcable only
G: Graupner / robbe / Kokam adaptor 2,54 mm 3s/4s/5s/6s
T: Thunderpower / Flightpower adaptor 2,0 mm 3s/4s/5s/6s/8s

Pris/Price: 98
LiPo Checker PRO8
Artikel nr. 0689 PRO8 Battery Adaptor
Selection:
A: 16-Pin Header with ribbon cable for DIY 1,85
All others ready2use EUR 7.35:

G3: Kokam/Graupner/robbe 2s/3s (7.4/11.1V)

G4: Kokam/Graupner/robbe 4s (14.8V)

G5: Kokam/Graupner/robbe 5s (18.5V)

G6: Kokam/Graupner/robbe 6s (22.2V)

T3: Thunder-/Flightpower 2s/3s (7.4/11.1V)

T4: Thunder-/Flightpower 4s (14.8V)

T5: Thunder-/Flightpower 5s (18.5V)

T6: Thunder-/Flightpower 6s (22.2V)

T8: Thunder-/Flightpower 8s (29.6V)

Pris/Price: 2
PRO8 Battery Adaptor_0689

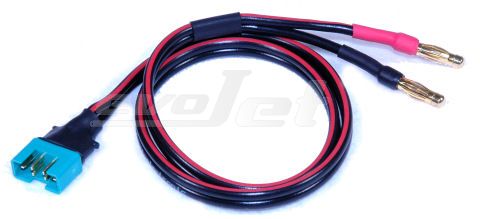

Charging Lead MPX_0376
Artikel nr. 0376 Charging Lead MPX
This high-flexible charging cable is suitable for daily use with all battery chargers. Its 4-mm multi-contact plugs are gold plated and gives excellent connection.
Length: ca. 50 cm

Pris/Price: 12

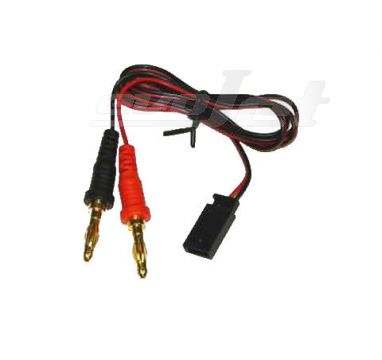

Artikel nr. 0371 Charging Lead Futaba Rx
This flexible Futaba charging cable is suitable for daily use with all battery chargers. Its 4-mm multi-contact plugs are gold plated and gives excellent connection.
Length: ca. 60 cm


Pris/Price: 6

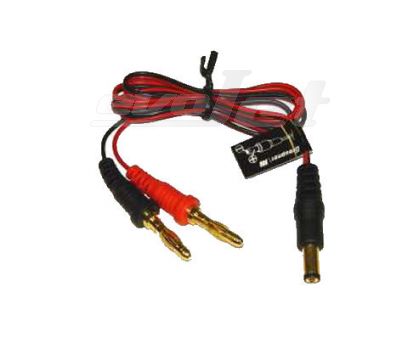

Charging Lead JR Tx_0377
Artikel nr. 0377
This flexible JR-transmitter charging cable is suitable for daily use with all battery chargers. Its 4-mm multi-contact plugs are gold plated and gives excellent connection.
Length: ca. 60 cm

Pris/Price: 7

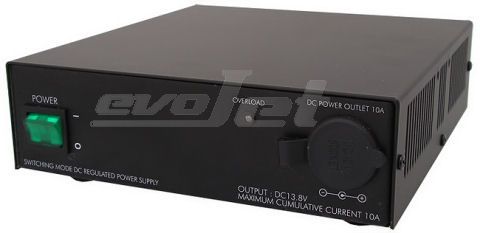

SPS-1310_0410
Artikel nr. 0410  SPS-1310
This compact and light-weight switching power supply is built into a robust metal housing. You can operate your 12V devices wherever a mains supply is available. The device is fully protected against overheating, overload and short circuits.
Input: 230 V / 50 Hz (not for U.S.)
Output: 13.8 V / 10 A (12 A)
Dimensions: 181 x 63 x 190 mm
Weight: 1.6 kg

Pris/Price: 90
SPS-1323_0420
SPS-8250_0430
SPS-9400_0440

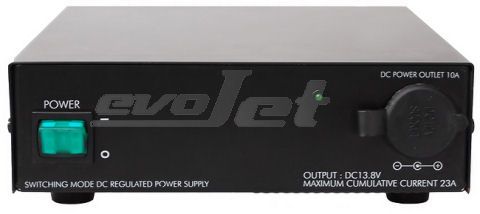

Artikel nr. 0420  SPS-1323
This compact and light-weight switching power supply is built into a robust metal housing. You can operate your 12V devices wherever a mains supply is available. The device is fully protected against overheating, overload and short circuits.
Input: 230 V / 50 Hz (not for U.S.)
Output: 13.8 V / 23 A (25 A)
Dimensions: 181 x 63 x 190 mm
Weight: 1.7 kg

Pris/Price: 110

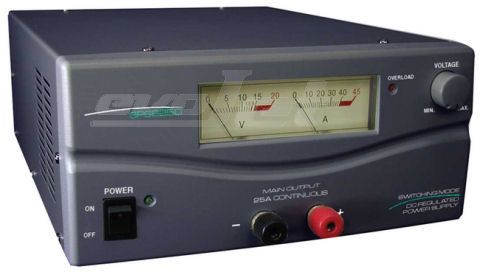

Artikel nr. 0430  SPS-8250
This luxury switching power supply in an elegant softline housing delivers enough power to operate several 12V devices at full power. Due to its adjustable output voltage, it can also be used for a wide variety of other purposes. Two big analog instruments informs about the output voltage and amps. The device is equipped with a built-in cooling fan and is fully protected against overheating, overload and short circuits.
Input: 230 V / 50 Hz (not for U.S.)
Output: 3 - 15 V adjustable / 25 A
Dimensions: 220 x 110 x 230 mm
Weight: approx. 2.7 kg

Pris/Price: 130

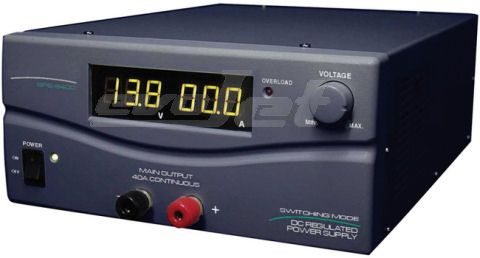

Artikel nr. 0440  SPS-9400
This high-end switching power supply in an elegant softline housing delivers enough power to operate several 12V devices at full power. Due to its adjustable output voltage, it can also be used for a wide variety of other purposes. Two big digital displays inform you about the output voltage and current at any time. The device is equipped with a built-in cooling fan and is fully protected against overheating, overload and short circuits.
Input: 230 V / 50 Hz (not for U.S.)
Output: 3 - 15 V adjustable / 40 A
Dimensions: 220 x 110 x 300 mm
Weight: approx. 3.5 kg

Pris/Price: 200
