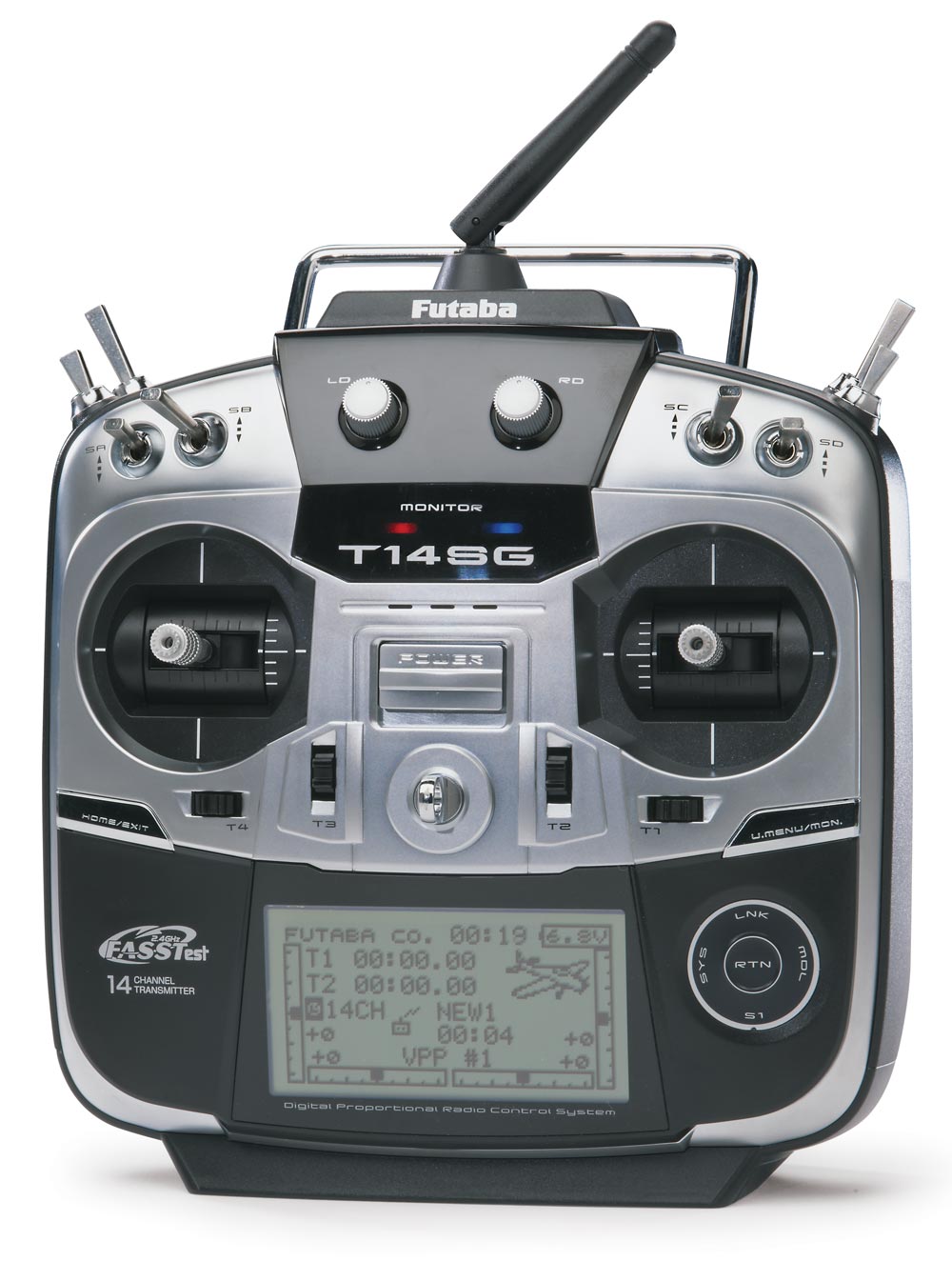

T14SG Radio /R7008SB/2.4G
FASSTest tech. Flybarless gyro support. S.Bus programmability. Telemetry. The 14SG has it all. . . and more!

Futaba proudly introduces the 14SG, the only 14-channel system with revolutionary 2.4GHz FASSTest technology. It's also compatible with Futaba FASST and S-FHSS protocols, so you can fly with virtually any 2.4GHz air receiver Futaba produces.

The 14SG can transmit and receive telemetry data. Install Futaba telemetry sensors (sold separately) to monitor flight data, receive alerts while in flight and more. Heli pilots will prefer the 14SG's 3-axis gyro support — which makes the 14SG the perfect system for flybarless flight!

The innovations don't stop there. Turn the 14SG over, and you'll see the construction is as rock-solid as any other Futaba system. It's also very comfortable to use, thanks to rubber grips that help minimize flyer fatigue — an added bonus that pilots will appreciate.

The 14SG has so much to offer, we can't talk about everything here. To see everything that the 14SG can do, read on...

Price: 698 € ( FPT14SG )

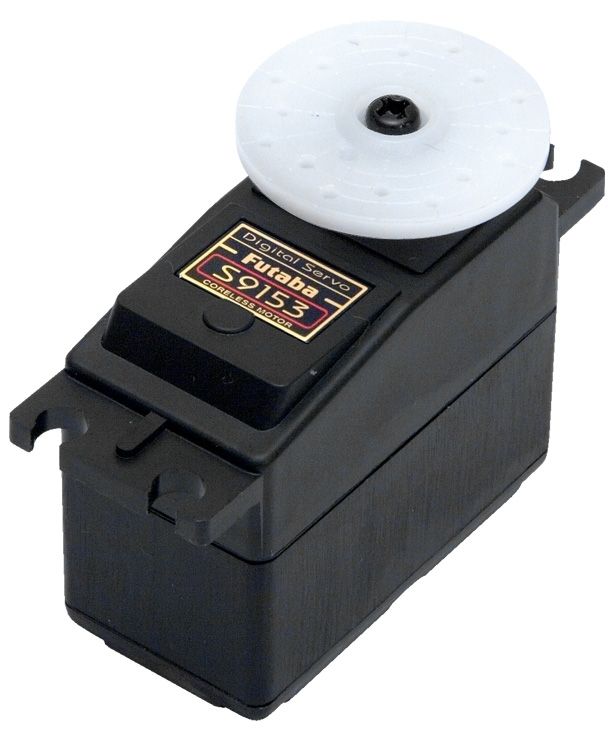

S9153 Digital servo15kg 0.15s
Digitalt large-scale servo med metalldrev och dubbla kullager. Storlek: 48.6 x 25.2 x 39.7 mm
Vikt: 85 g
Dragkraft: 15 kg/cm @ 6V & 12 kg/cm @ 4.8V
Speed: 0.15 s/60gr @ 6V & 0.18 s/60gr @ 4.8V

Price: 139 € ( FPS9153 )

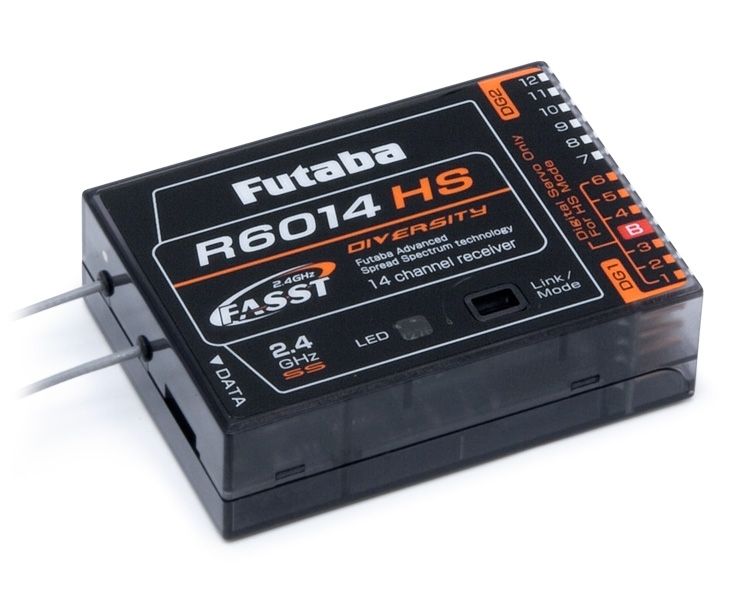

R6014 HS
Receiver/Mottagare 14-kanal 2.4G FASST
This is the Futaba R6014HS 2.4GHz FASST 14-Channel Park Flyer to Giant Scale Aircraft Receiver.

Simple one-touch linking - no plugs to mess with or lose

A full range system for all aircraft from giant scale to Park Flyer applications-no need to buy separate receiver for specific aircraft
Two operation modes; Normal, frame rate of 14ms accepts any type of servos and High Speed with a frame rate of 7ms for digital servos including the Futaba BLS servos
High Speed on channels 1 through 6.
Dual Antenna Diversity allows 2.4GHz FASST Futaba transmitter selects the best reception between the two receiver antennas with no signal loss
Rubber grommets installed where antennas exit eliminates stress and fraying of the two antenna wires

Price: 235 € ( FPR6014HS )
In stock, ready for delivery

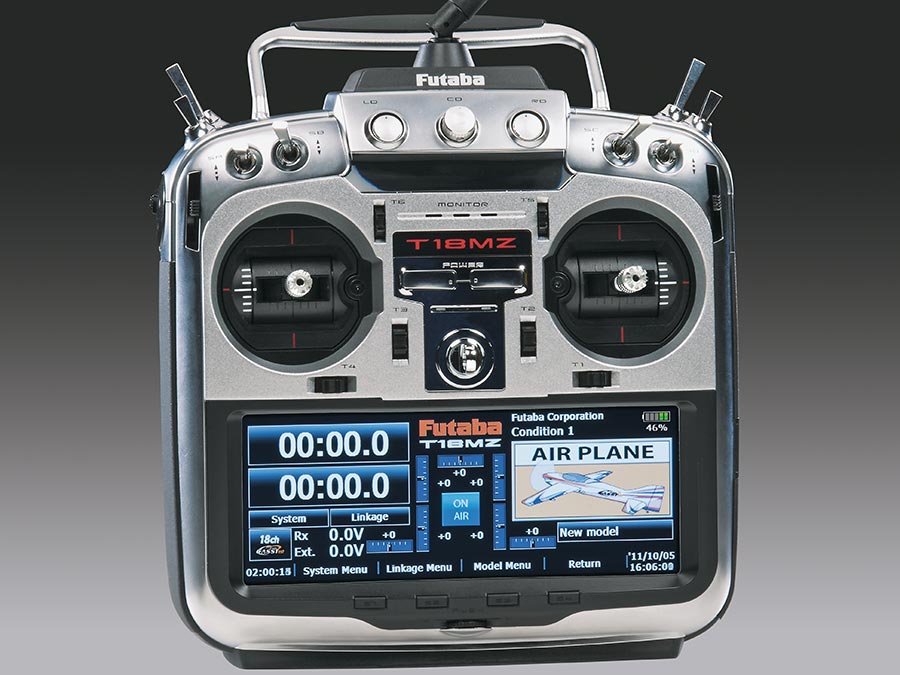

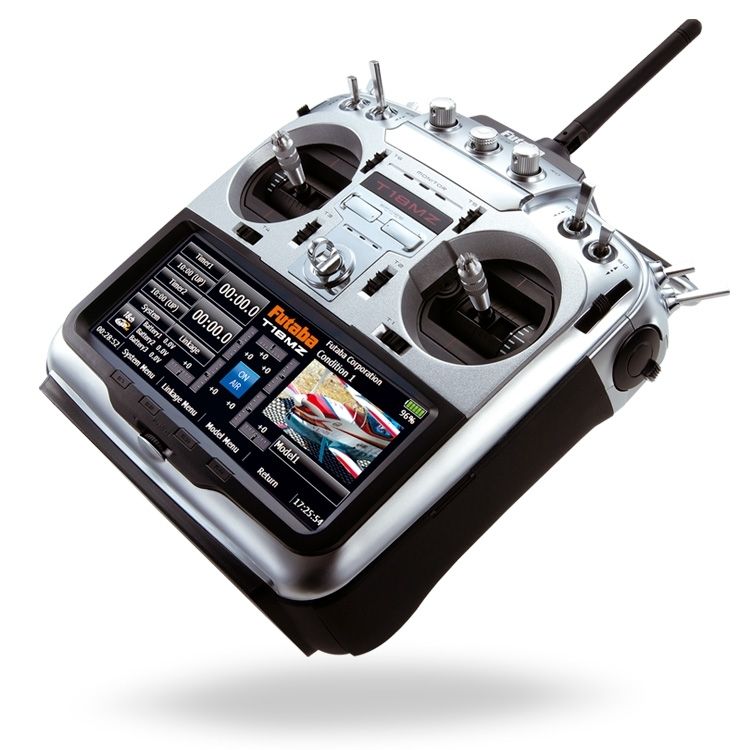

T18MZ Radio -R7008SB FASSTest
Airplane, helicopter, glider and motor glider programming
3 assignable rotary knobs
4 assignable slider switches (2/side)
5 assignable three-position switches
2 assignable two-position switches
1 assignable momentary two-position switch
Dual, high-speed processors
Earphone jack
0.3 megapixel camera
Audio & Video players

Built-in microphone
Programming tools for S.Bus servos & gyros
Easy Link ID touch screen
Comfortable rubber grips on the sides and back
Stick calibration, plus tension and angle adjustments
Quad bearing gimbals
Quick model select
Servo monitor (neutral and moving tests)
2 up/down timers
Integral timer system
Model timer
4 vibration warning options (battery, condition, trim mix 1 & 2)
Programmable trainer system
Servo speed adjust
Trim mix
Programmable logic switches
User menu
Sub-trim (240 steps; channels 1-16)
Servo reversing (all channels)
Fail-Safe (all channels)
Battery fail-safe (all linear channels)
Endpoint Adjustment (all channels)
Trim (adjustable step, rate & mode)
Flight conditions
AFR curve mode (6)
AFR curve point number (15)

Price: 3049 € ( FPT18MZ )

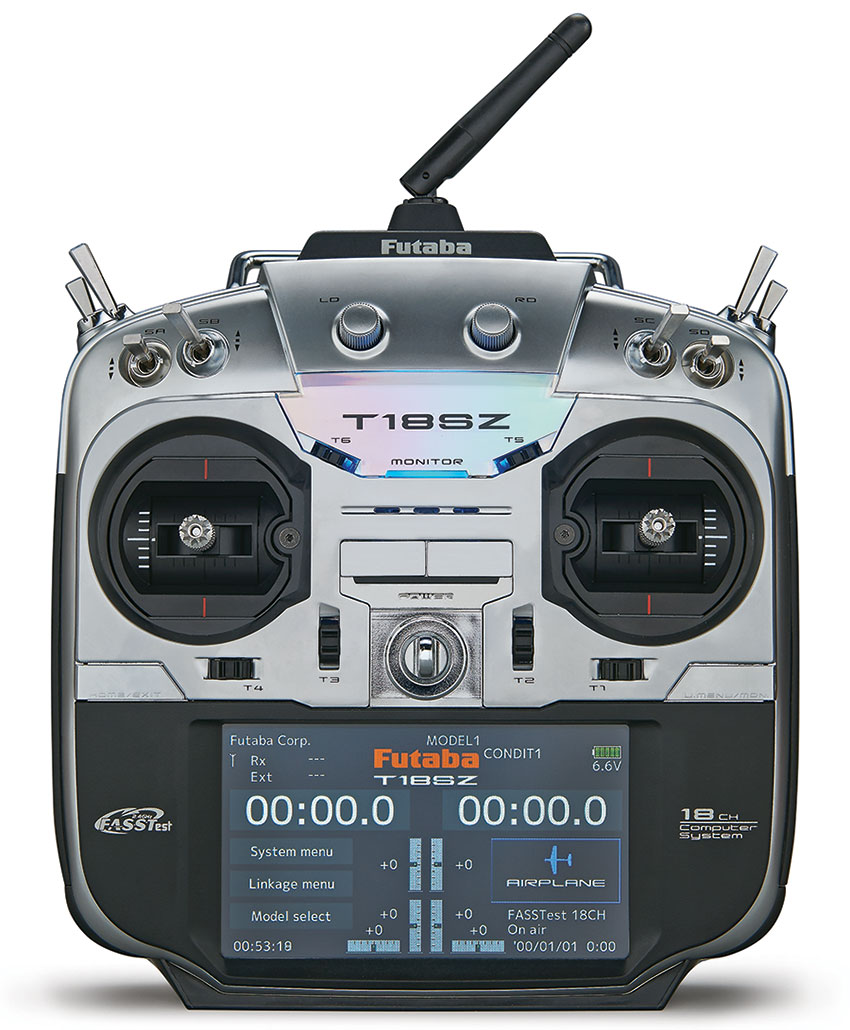

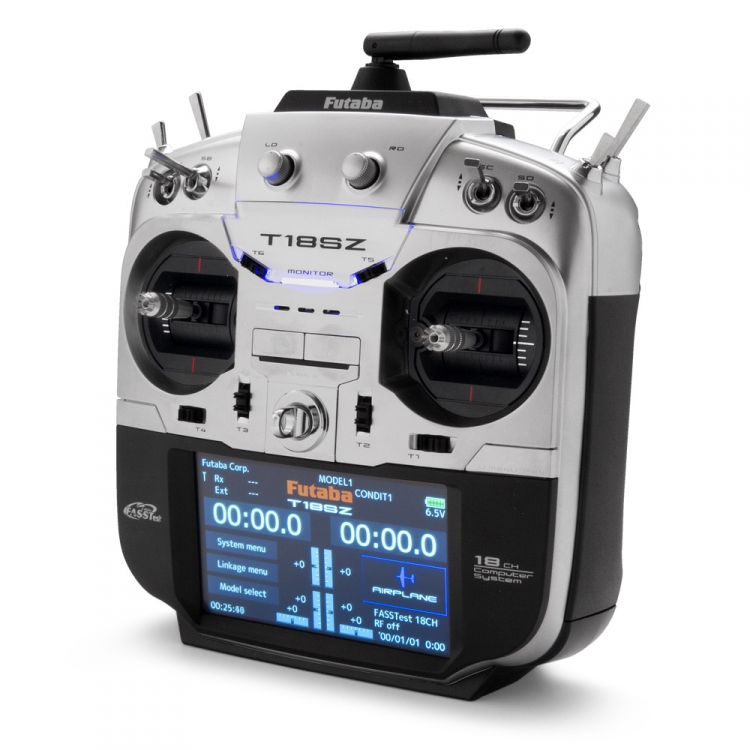

T18SZ Radio -R7008SB FASSTest
It's here. It's the one you've been waiting for.
FASSTest, FASST, T-FHSS, S-FHSS Radio System
An incredibly sophisticated 18-channel marvel, the 18SZ is perfect for pro pilots and weekend wingers alike. It offers flights conditions, in addition, to many of the functions and features of top-of-the-line systems at an affordable price.. of the 18MZ.

Leading off its list of features is full telemetry function. The 18SZ is set up to receive temperature, RPM, altitude, GPS, voltage, current, and data logging telemetry information, keeping you more tightly riveted to your aircraft than ever before. And, its intuitive full touchscreen display and long battery life make it the radio every serious pilot needs at the field.
4.3 inch full-color fast-processing touch LCD screen for quick, clear data viewing and menu surfing
8 full conditions to customize every flight to your flying situation
Telemetry temperature, RPM, altitude, GPS, voltage, current, and data logging to keep you more connected to your model than ever before
Expandable, 30-model internal memory to save your settings for all your aircraft
6.6V 2100mAh LiFe battery for 7 to 8 hours of flight time
Telemetry voice messages keep you up to date on your plane's vital statistics
User-updateable software lets you keep your radio cutting edge
2 side levers, 6 digital trims, 8 toggle switches to accommodate every function you can dream up
Quad bearing stick assemblies
Speaker and earphone jack for audible telemetry announcements
Trainer and S.Bus ports
Data editor S.Bus programming
15 character user naming and model naming
Sub trims
Servo reversing
End point adjustment
Data resets

Battery fail safe
Servo speed adjustment
AFR curve mode (3)
AFR curve point (17 points)
Programmable mixing (10 circuits per condition)
Throttle cut
Idle down
Logic switch
User menu
Servo monitor
Up/down timer (2)
System timer
Model timer
Throttle stick alarm
Rubber hand grips
Backlight adjustment
Alarm voltage
Alarm vibrator
Auto power off
Range check
Dual receiver set up

Price: 1035 € ( FPT18SZ )
In stock, ready for delivery

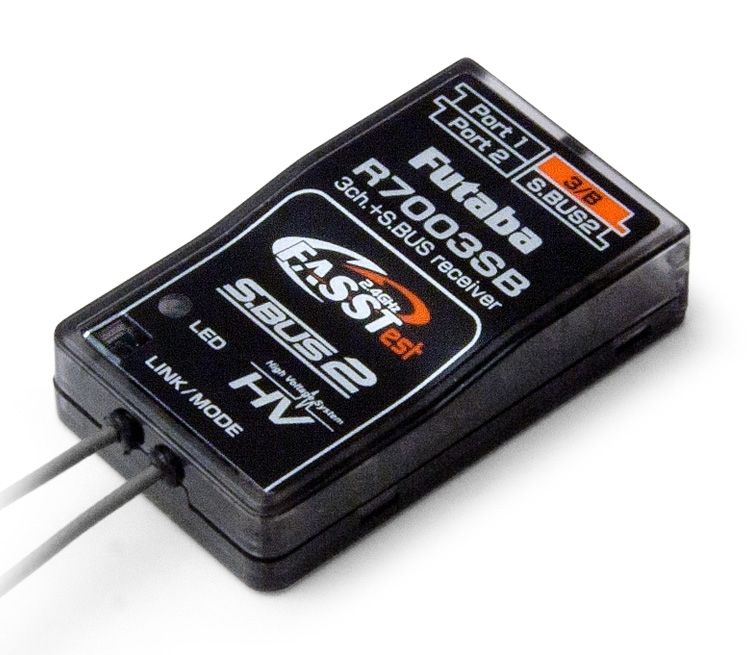

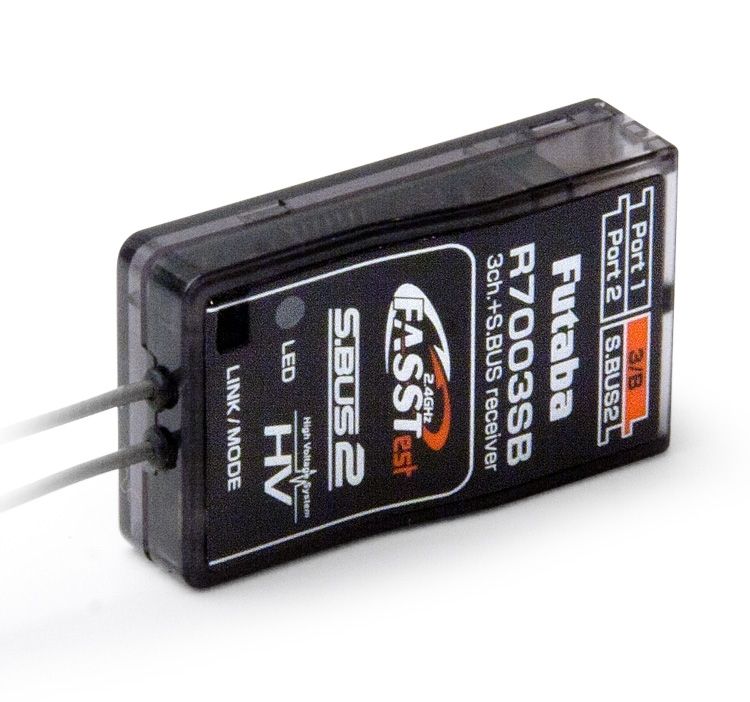

Receiver/Mottagare 3-k 2.4G FASSTest HV S.BUS2

En ny mindre och lättare 2.4GHz FASSTest™ mottagare för T18MZ och T14SG anläggningarna.

Notera: i dagsläget verkar det som Mikado V-bar gyro inte fungerar tillsammans med R7003SB. 2.4GHz FASSTest™ 3CH + S.BUS kanaler

High Voltage system

S.BUS2 bi-directional (telemetri)

Storlek: 37.4 x 22.4 x 9.4 (8.05) mm Vikt: 7 g

Price: 115 € ( FPR7003SB )

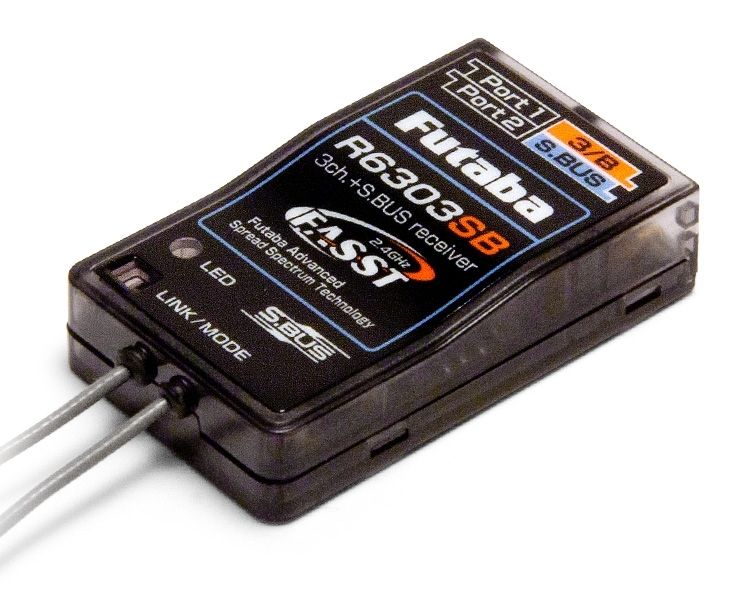

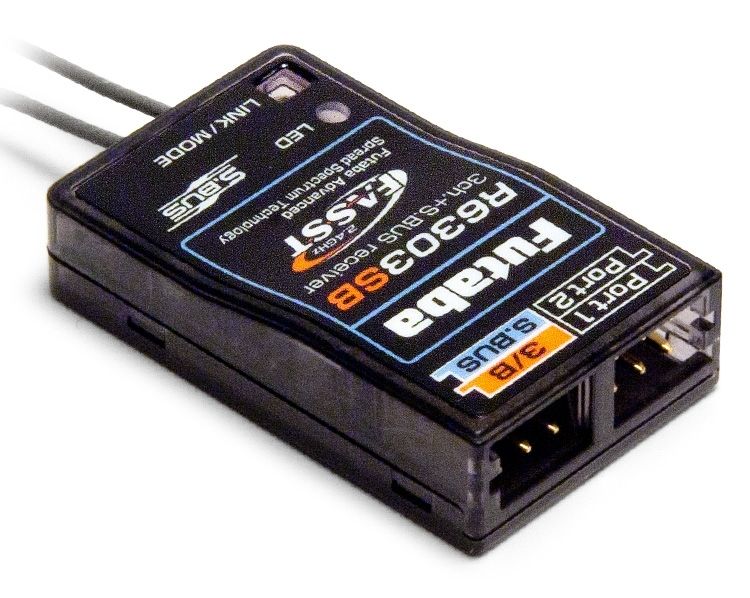

Receiver/Mottagare 3-k 2.4GS.BUS
HV 3,77,4V


Dual Antenna Diversity

3 kanaler + S.BUS Power: 1-2S LiPo (3.5-8.4V)

Storlek: 37.4 x 22.5 x 9.3 mm

Vikt: 7.2g

Price: 84 € ( FPR6003SB )
In stock, ready for delivery
In stock, ready for delivery
SALE, S9153, NOW 78€, BEFORE 139€

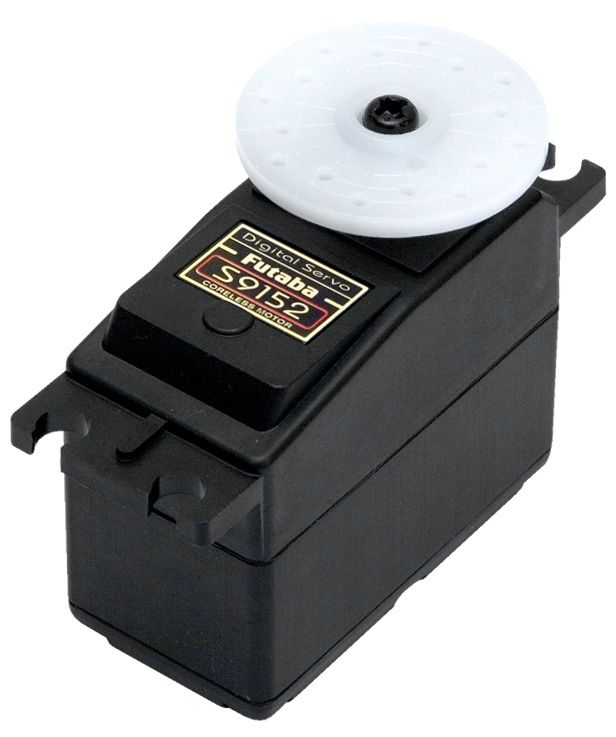

S9152 Digital servo20kg 0.19s
Digitalt large-scale servo med metalldrev och dubbla kullager. Storlek: 48.6 x 25.2 x 39.7 mm
Vikt: 85 g
Dragkraft: 20 kg/cm @ 6V & 16 kg/cm @ 4.8V
Speed: 0.19 s/60gr @ 6V & 0.23 s/60gr @ 4.8V

Price: 144 € ( FPS9152 )

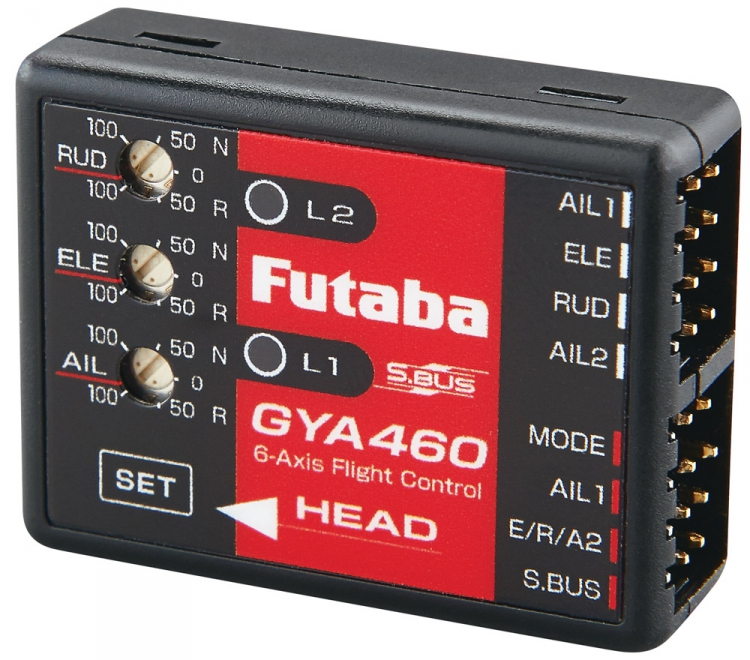

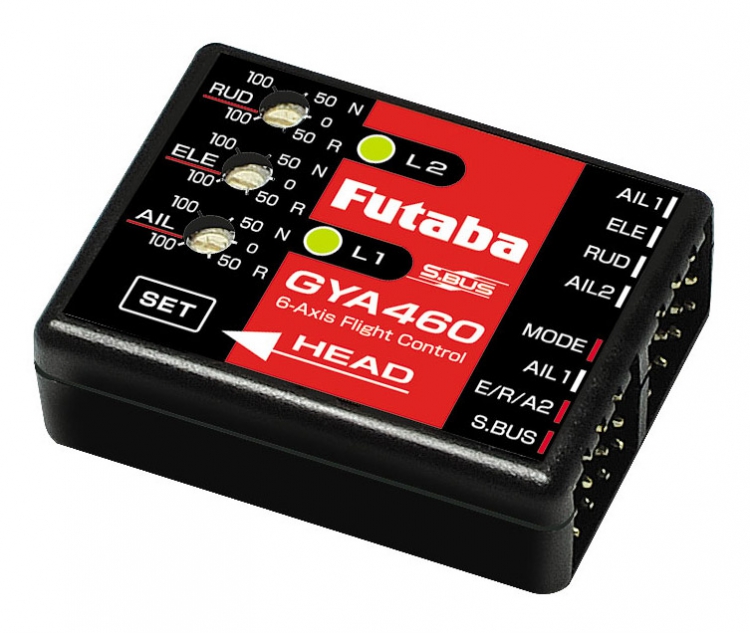

The GYA460 is a flight attitude controller and stabilizer designed exclusively for model aircrafts. In addition to control by 3 axis gyro sensor, flight attitude is controlled by a 3 axis G-sensor.

Besides a beginners mode, which assists flight by beginners by automatic horizontal level return control and flight attitude angle control, a gyro-mode and gyro off mode can also be selected.

3-Axis Gyro plus 3-Axis Accelerometer
Auto level control support
Low profile, small size and light weight
Easy setup
S.BUS compatible - only one connection is necessary between the S.BUS receiver and GYA460
Three flight modes can be selected by transmitter switch
Sensitivity adjustment ca
n set aileron, elevator, and rudder separately by GYA460 trimmer
Parameters can be set by GYA460 SET button and LED
Tailless wing compatible
*Attitude cannot be controlled in the stalled state in which the rudder is ineffective
*2-Aileron, ?aperon, air brake mixing can't be used
*Always use only genuine Futaba transmitters, receivers, servos and other optional accessories

Beginner Mode (Blue)
This mode is suitable for level flight training of beginners.

The fuselage flight attitude angle is limited to approximately ± 80°.
When the transmitter sticks (except the throttle) are set to neutral, automatic horizontal level control returns the airplane to the level state.
Gyro Mode (Red)
This mode is suitable for inverted flight and acrobatics.
The plane is controlled by gyro sensor only.
Fuselage attitude angle limit and automatic horizontal level control a
re turned off.

Gyro-Off (Yellow)
In this mode, the plane is not controlled by gyro sensor.

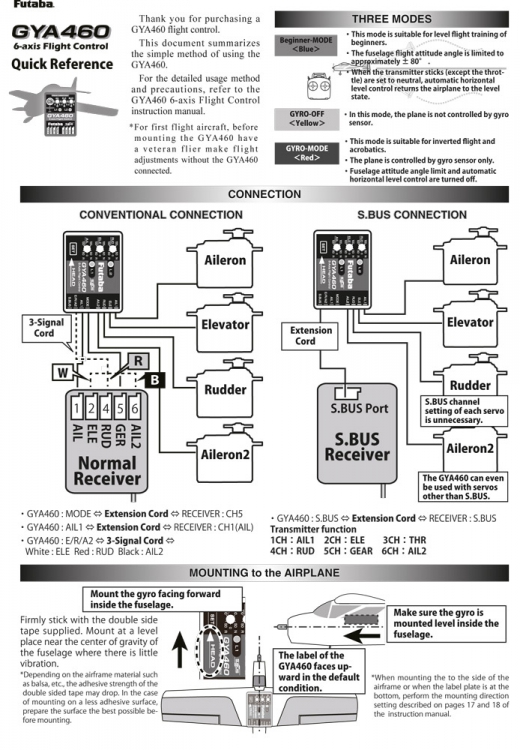

For the detailed usage method and precautions, refer to the GYA460 6-axis Flight Control instruction manual.

*For first flight of the aircraft, before mounting the GYA460, have an experienced flier make flight adjustments without the GYA460 connected.

Gyro sensor: MEMS vibrating structure gyro
Operating voltage: DC4.0 ~ 8.4V
Current drain: 44 mA
Operating temperature range: -10°~ +45°
Dimensions: 35 × 27 × 12mm
Weight: 10 g

Set Contents:
GYA460 × 1
Double Sided Tape × 1
3-Signal Cord × 1
Extension Cord × 2
Mini Screwdriver × 1
Manual × 1
Quick Reference × 1

Price: 92 € ( FPGYA460 )

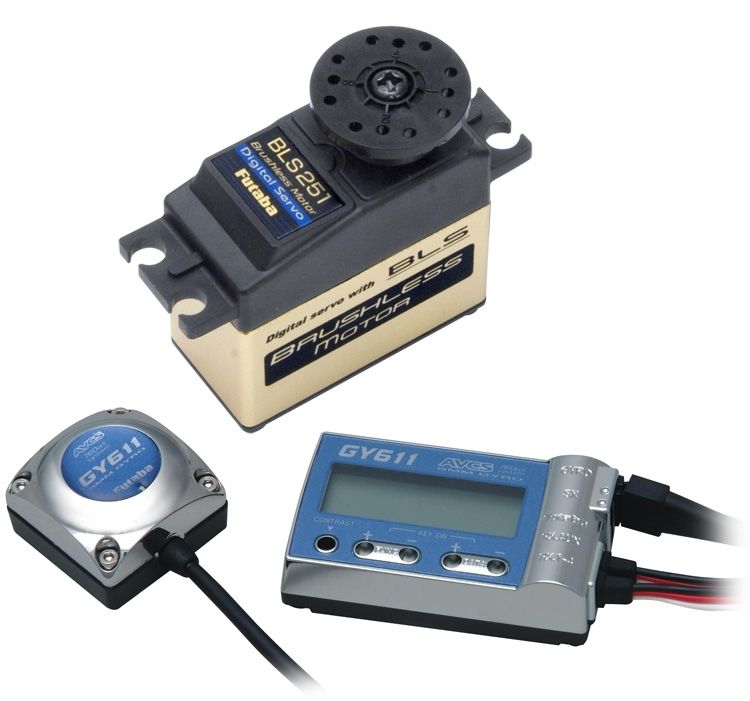

Gyro GY611 with BLS251 servo

Price: 423 € ( FPGY611BLS )
SALE, GY611 BLS, NOW 231€, BEFORE 423€

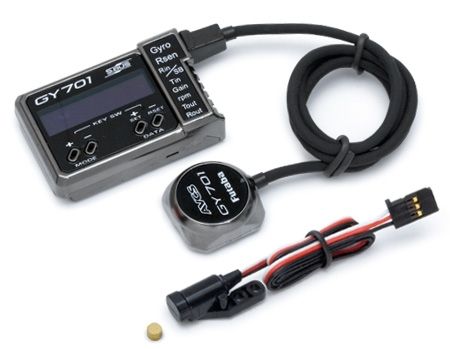

Price: 271 € ( FPGY701G )
SALE, GY611 BLS, NOW 164€, BEFORE 271€

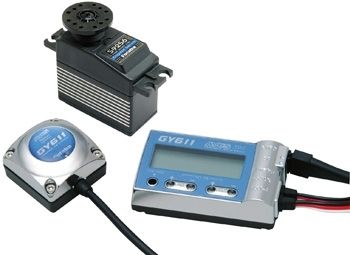

Gyro GY611 with S9256 servo

Price: 414 € ( FPGY611K )
SALE, GY611K, NOW 149€, BEFORE 414€
